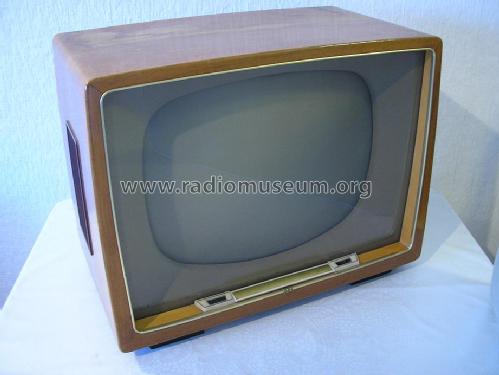

Asavisio 207

Asavisio 207; Asa, Turku (ID = 1206199) Television Asavisio 207; Asa, Turku (ID = 1149863) Television
Asavisio 207; Asa, Turku (ID = 1206197) Television Asavisio 207; Asa, Turku (ID = 1206198) Television
Asavisio 207; Asa, Turku (ID = 1206200) Television Asavisio 207; Asa, Turku (ID = 1206202) Television
Use red slider bar for more.
Asavisio 207; Asa, Turku (ID = 1206199) Television
Asa, Turku: Asavisio 207 [Television] ID = 1206199 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model Asavisio 207, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1959/1960 Category: Television Receiver (TV) or Monitor
Valves / Tubes 20: PCC88 PCF82 EF80 EF80 EF80 EF80 PCL84 PCF82 PCF80 ECH81 EF80 PABC80 PL82 ECC82 PCL82 PCF80 PL36 PY88 DY86 or DY87 AW43-88
Main principle Superheterodyne (common)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16.5 cm = 6.5 inch
Power out
from Radiomuseum.org Model: Asavisio 207 - Asa, Turku
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 515 x 406 x 280 mm / 20.3 x 16 x 11 inch
Notes Silicon rectifier: OA214 or OY220
Germanium diodes: OA160 OA172 OA150 OA150

Model page created by Timo Rantasaari. See "Data change" for further contributors.
