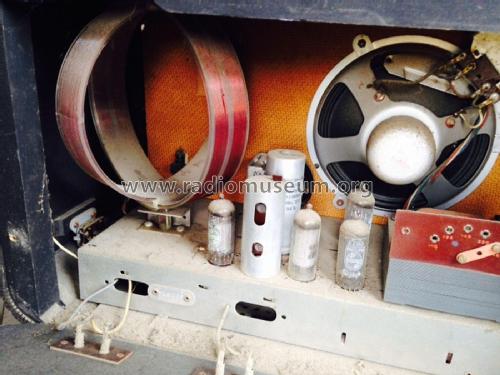

A52A; Atlantic; Paris (ID = 1799815) Radio A52A; Atlantic; Paris (ID = 1799814) Radio
A52A; Atlantic; Paris (ID = 1799812) Radio A52A; Atlantic; Paris (ID = 1799813) Radio
A52A; Atlantic; Paris (ID = 2069173) Radio
Use red slider bar for more.
A52A; Atlantic; Paris (ID = 1799815) Radio
Atlantic; Paris: A52A [Radio] ID = 1799815 1400x948
Select picture or schematic to display from thumbnails on the right and click for download.
For model A52A, Atlantic; Paris:
Picture courtesy of guest H. Stet

Country:  France
Manufacturer / Brand:  Atlantic; Paris
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EBF80 EF41 EL84 DM70 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: A52A - Atlantic; Paris
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 410 x 310 x 250 mm / 16.1 x 12.2 x 9.8 inch
Notes

4 gammes d'ondes: PO 185,1 à 577 m, GO 909 à 2000 m, OC 16,48 à 51,3 m, BE 45,5 à 51,3 m. Contre-réaction, réglage de tonalité progressif. Prise PU. Cadre à air oriéntable.

Coffret bois, avant matière plastique ivoire ou bordeaux.

Équivalent au Médiator M25A. Voir aussi ce modèle à identifier avec décor différent.

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 22'600.00 FRF
Mentioned in -- Original-techn. papers.

Model page created by Vitor Oliveira. See "Data change" for further contributors.
