A92A

A92A; Atlantic; Paris (ID = 283912) Radio A92A; Atlantic; Paris (ID = 283356) Radio
A92A; Atlantic; Paris (ID = 283355) Radio A92A; Atlantic; Paris (ID = 160017) Radio
A92A; Atlantic; Paris (ID = 1383642) Radio A92A; Atlantic; Paris (ID = 1383643) Radio
A92A; Atlantic; Paris (ID = 1383644) Radio A92A; Atlantic; Paris (ID = 1383645) Radio
A92A; Atlantic; Paris (ID = 1383646) Radio A92A; Atlantic; Paris (ID = 1383647) Radio
Use red slider bar for more.
A92A; Atlantic; Paris (ID = 283912) Radio
Atlantic; Paris: A92A [Radio] ID = 283912 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model A92A, Atlantic; Paris:
Photo prise avant restauration de l'ébenisterie

Country:  France
Manufacturer / Brand:  Atlantic; Paris
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EF41 EBC41 EL41 EM4 AZ41
schematic requested
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: A92A - Atlantic; Paris
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 320 x 230 mm / 21.7 x 12.6 x 9.1 inch
Notes

4 gammes d'ondes: GO 1000 à 2000 m, PO 187 à 580 m, OC 16 à 51 m, OC1 étalées sur 49 m. Prise pick-up et HP supplémentaire.

Ébénisterie en noyer verni avec deux joues latérales avec motifs de marqueterie. Cadre métallique avec motifs en matière plastique.

Modèle se fait en deux exécutions: 50 ou 25 périodes.

Net weight (2.2 lb = 1 kg) 9.6 kg / 21 lb 2.3 oz (21.145 lb)
Price in first year of sale 19'450.00 F

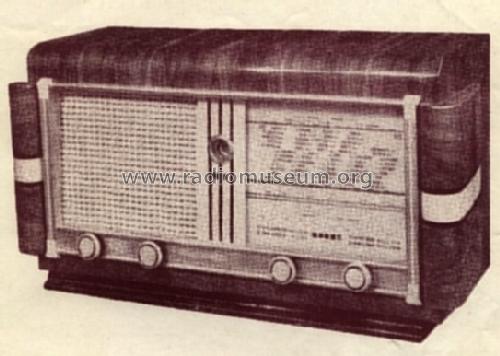

Mentioned in -- Original prospect or advert

Model page created by Lutwin Berndt † 5.10.14. See "Data change" for further contributors.
