A73

A73; Audax; Milano (ID = 1530341) Radio
A73; Audax; Milano (ID = 1529699) Radio A73; Audax; Milano (ID = 1529702) Radio

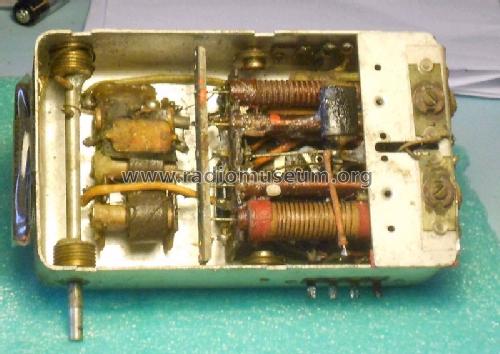

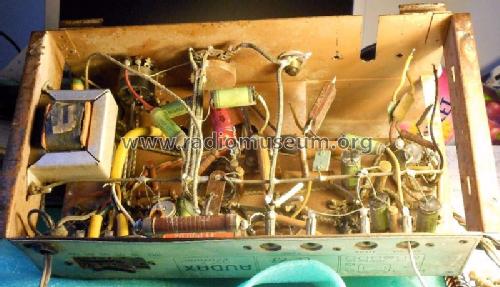

A73; Audax; Milano (ID = 1529703) Radio A73; Audax; Milano (ID = 1529705) Radio
A73; Audax; Milano (ID = 1529706) Radio A73; Audax; Milano (ID = 1529707) Radio
A73; Audax; Milano (ID = 1529709) Radio
Use red slider bar for more.
A73; Audax; Milano (ID = 1529699) Radio
Audax; Milano: A73 [Radio] ID = 1529699 900x522
Select picture or schematic to display from thumbnails on the right and click for download.
For model A73, Audax; Milano

Country:  Italy
Manufacturer / Brand:  Audax; Milano
Year: 1949 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EF41 EBC41 EL41 EM34 AZ41
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: A73 - Audax; Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 700 x 420 x 325 mm / 27.6 x 16.5 x 12.8 inch

Model page created by Piero Del Peschio. See "Data change" for further contributors.



All listed radios etc. from Audax; Milano
Here you find 2 models, 2 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
