Mascotte

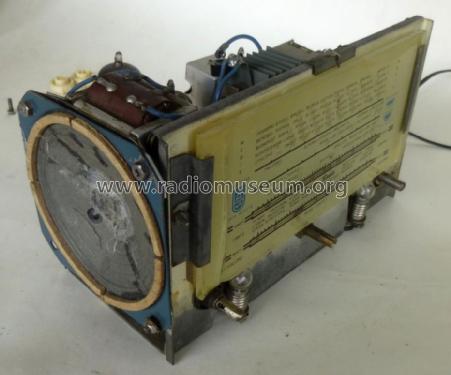

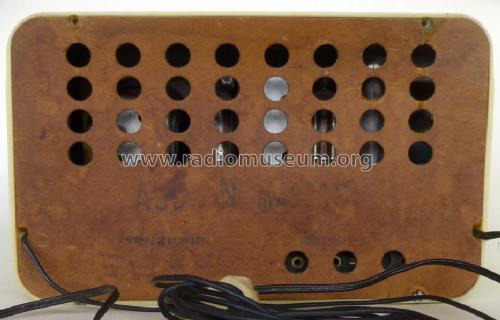

Mascotte ; Audion; Bologna (ID = 1636135) Radio Mascotte ; Audion; Bologna (ID = 1845856) Radio
Mascotte ; Audion; Bologna (ID = 1845857) Radio Mascotte ; Audion; Bologna (ID = 1636145) Radio
Mascotte ; Audion; Bologna (ID = 1636139) Radio Mascotte ; Audion; Bologna (ID = 1636140) Radio
Mascotte ; Audion; Bologna (ID = 1636141) Radio Mascotte ; Audion; Bologna (ID = 1636142) Radio
Mascotte ; Audion; Bologna (ID = 1636143) Radio Mascotte ; Audion; Bologna (ID = 1636138) Radio
Use red slider bar for more.
Mascotte ; Audion; Bologna (ID = 1636135) Radio
Audion; Bologna: Mascotte [Radio] ID = 1636135 933x723
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mascotte, Audion; Bologna

Country:  Italy
Manufacturer / Brand:  Audion; Bologna
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH41 UAF42 UAF42 UL41
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Mascotte - Audion; Bologna
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 220 x 130 x 100 mm / 8.7 x 5.1 x 3.9 inch
Source of data Guida Pratica Antique Radio III (2000)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Audion; Bologna
Here you find 3 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
