• Year
  • 1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 196360

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material

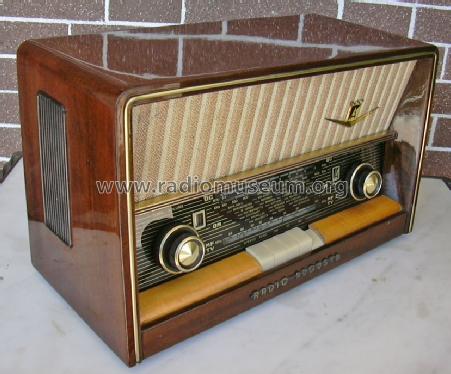

  • Wooden case
  • from Radiomuseum.org
  • Model: AR712MF - Augusta Costruzioni
  • Shape

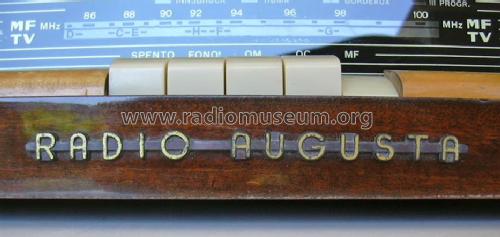

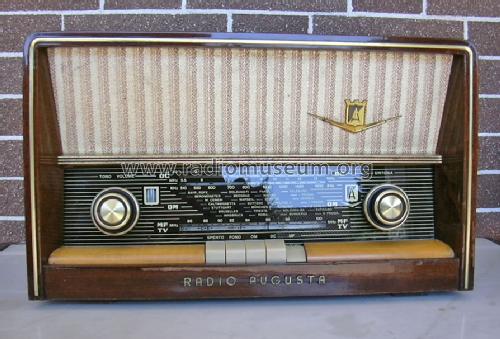

  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 440 x 260 x 210 mm / 17.3 x 10.2 x 8.3 inch
  • Notes
  • Riceve anche audio TV.
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
