Hotpoint-Bandmaster J36SE

Hotpoint-Bandmaster J36SE; Australian General (ID = 2397811) Radio Hotpoint-Bandmaster J36SE; Australian General (ID = 1823786) Radio
Use red slider bar for more.

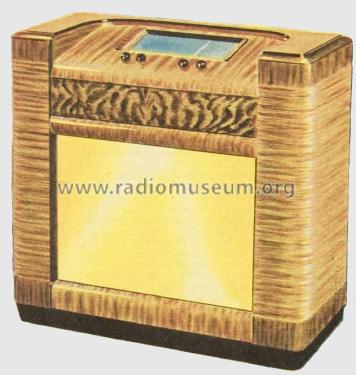

Hotpoint-Bandmaster J36SE; Australian General (ID = 2397811) Radio
Australian General: Hotpoint-Bandmaster J36SE [Radio] ID = 2397811 1400x1472
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hotpoint-Bandmaster J36SE, Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney:
The Australian Women's Weekly, 11/6/1949, Page 6

Country:  Australia
Manufacturer / Brand:  Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
alternative name

General Electric Company of Australia Ltd.
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6U7G 6J8GA 6U7G 6G8G or 6B8G 6U5 or 6G5 6V6GT 5Y3GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 200-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: Hotpoint-Bandmaster J36SE - Australian General Electric GE
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes This model has seven bands covering 540 kHz to 22.3 MHz with no gaps.
Circuit diagram reference Australian Official Radio Service Manual Vol. VIII

Model page created by Stuart Irwin. See "Data change" for further contributors.
