Hotpoint-Bandmaster Q55DE

Hotpoint-Bandmaster Q55DE; Australian General (ID = 2348200) Radio

Hotpoint-Bandmaster Q55DE; Australian General (ID = 2348201) Radio
Use red slider bar for more.
Hotpoint-Bandmaster Q55DE; Australian General (ID = 2348200) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
alternative name

General Electric Company of Australia Ltd.
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J8GA 6SK7GT 6SQ7GT 6V6GT 6X5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 200-230; 230-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm
Power out 3 W (undistorted)
from Radiomuseum.org Model: Hotpoint-Bandmaster Q55DE - Australian General Electric GE
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 20.25 x 10.5 x 8.875 inch / 514 x 267 x 225 mm
Notes This model uses the same chassis as the AWA Radiola model 615T.

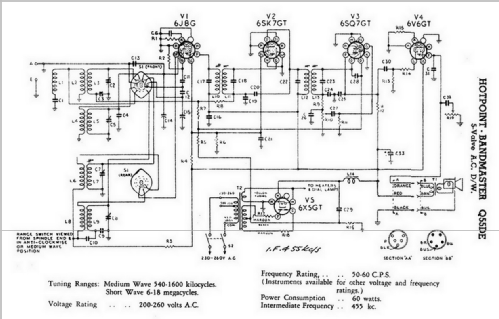

Circuit diagram reference Australian Official Radio Service Manual Vol. VII
Literature/Schematics (1) Mingay's Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.
