• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Autocrat Radio Ltd.; Auckland

• Year
• 1967 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 336961

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• or or or or

• Number of Transistors
• 8

• Semiconductors
• 2SA222 2SA104 2SA222 2SA104 2SA322 2SA101 2SA203 2SA101 2SB185 2SB185 2SB822 2SB822 1S188

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / C: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Power out
• 0.23 W (0.42 W max.)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Autocrat Sanyo All Wave Deluxe 8U-604A - Autocrat Radio Ltd.; Auckland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 9.25 x 6 x 2.75 inch / 235 x 152 x 70 mm

• Notes

• 8 transistor all wave superhet

  New Zealand version of the Sanyo 8U-604A

  Sold as Autocrat Sanyo 8 Transistor All Wave

• Mentioned in
• -- Original prospect or advert (Press 23 October 1968 Page 9)

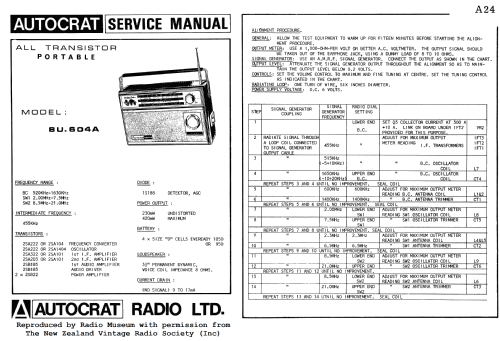

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
