Tom Thumb Transistor Radio TT-600

Tom Thumb Transistor Radio TT-600; Automatic Radio Mfg. (ID = 1721078) Radio

Tom Thumb Transistor Radio TT-600; Automatic Radio Mfg. (ID = 1721444) Radio

Tom Thumb Transistor Radio TT-600; Automatic Radio Mfg. (ID = 1722703) Radio

Tom Thumb Transistor Radio TT-600; Automatic Radio Mfg. (ID = 1722704) Radio

Tom Thumb Transistor Radio TT-600; Automatic Radio Mfg. (ID = 1722705) Radio
Tom Thumb Transistor Radio TT-600; Automatic Radio Mfg. (ID = 1471908) Radio Tom Thumb Transistor Radio TT-600; Automatic Radio Mfg. (ID = 1471911) Radio
Tom Thumb Transistor Radio TT-600; Automatic Radio Mfg. (ID = 1471910) Radio Tom Thumb Transistor Radio TT-600; Automatic Radio Mfg. (ID = 1471913) Radio
Tom Thumb Transistor Radio TT-600; Automatic Radio Mfg. (ID = 1471909) Radio Tom Thumb Transistor Radio TT-600; Automatic Radio Mfg. (ID = 1471912) Radio
Tom Thumb Transistor Radio TT-600; Automatic Radio Mfg. (ID = 2451943) Radio Tom Thumb Transistor Radio TT-600; Automatic Radio Mfg. (ID = 2451944) Radio
Tom Thumb Transistor Radio TT-600; Automatic Radio Mfg. (ID = 2451941) Radio Tom Thumb Transistor Radio TT-600; Automatic Radio Mfg. (ID = 2451942) Radio
Use red slider bar for more.
Tom Thumb Transistor Radio TT-600; Automatic Radio Mfg. (ID = 1471908) Radio
Automatic Radio Mfg.: Tom Thumb Transistor Radio TT-600 [Radio] ID = 1471908 933x767
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tom Thumb Transistor Radio TT-600, Automatic Radio Mfg. Co.; Boston (MA)

Country:  United States of America (USA)
Manufacturer / Brand:  Automatic Radio Mfg. Co.; Boston (MA)
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: 1V6 1AH4 1AJ5
Semiconductors (the count is only for transistors) 2: OC71 OC71
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 4 & 45 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Tom Thumb Transistor Radio TT-600 - Automatic Radio Mfg. Co.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 5 x 3.25 x 1 inch / 127 x 83 x 25 mm
Notes The Tom Thumb TT-600 Tube/Transistor Hybrid from Automatic Radio was displayed in the Spring/Summer 1956 Continental mail-order catalog (weight 1,5 lbs). It came in colors Red, Blue, Melon and Charcoal Styrene case. Successor of TT528, where the output tube 1AG4 is replaced by 2 transistors.
Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)
Mentioned in Funkgeschichte der GFGF (Nr. 109 (1996) S. 124)
Literature/Schematics (1) Schiffer, The Portable Radio in American Life

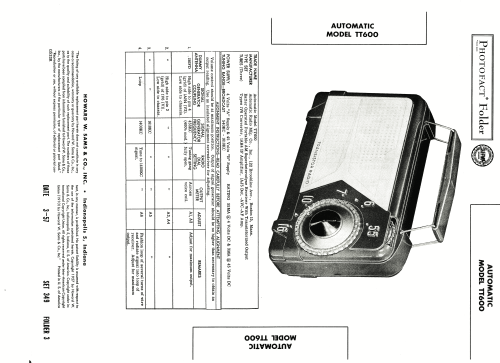

Literature/Schematics (2) Photofact Folder, Howard W. SAMS (Set 349 Folder 3 Date 3-57)

Model page created by Günther Stabe. See "Data change" for further contributors.



All listed radios etc. from Automatic Radio Mfg. Co.; Boston (MA)
Here you find 373 models, 141 with images and 308 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
