• Country
• Switzerland

• Manufacturer / Brand
• Autophon AG (inkl. Téléphonie SA); Solothurn

• Year
• 1944/1945

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 11360

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH21 ECH21 EBL21 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 471 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

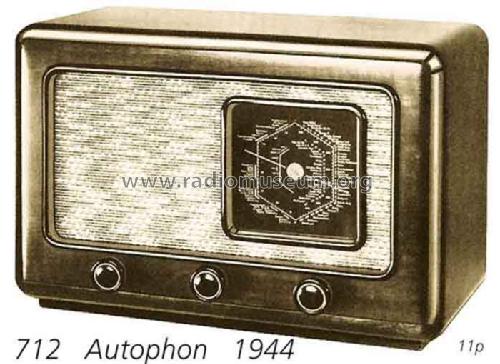

• Model: 712 [mit AZ1] - Autophon AG inkl. Téléphonie

• Dimensions (WHD)
• 384 x 260 x 186 mm / 15.1 x 10.2 x 7.3 inch

• Notes
• 1500/20080a* (Engl. Prospekt)

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Thali-Schemasammlung und Tungsram-Röhrenbestückung.

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
