832

832; Autophon AG inkl. (ID = 16520) Radio
832; Autophon AG inkl. (ID = 1379) Radio 832; Autophon AG inkl. (ID = 21422) Radio
832; Autophon AG inkl. (ID = 256840) Radio 832; Autophon AG inkl. (ID = 256841) Radio
832; Autophon AG inkl. (ID = 256842) Radio 832; Autophon AG inkl. (ID = 256843) Radio
832; Autophon AG inkl. (ID = 256844) Radio 832; Autophon AG inkl. (ID = 265293) Radio
832; Autophon AG inkl. (ID = 265294) Radio 832; Autophon AG inkl. (ID = 265295) Radio
Use red slider bar for more.
832; Autophon AG inkl. (ID = 1379) Radio

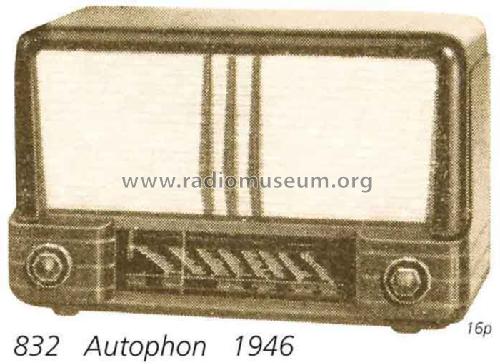

Autophon AG inkl.: 832 [Radio] ID = 1379 700x510
Select picture or schematic to display from thumbnails on the right and click for download.
For model 832, Autophon AG (inkl. Téléphonie SA); Solothurn

Country:  Switzerland
Manufacturer / Brand:  Autophon AG (inkl. Téléphonie SA); Solothurn
Year: 1946–1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH21 ECH21 EBL21 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 471 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 832 - Autophon AG inkl. Téléphonie
Material Bakelite case
Dimensions (WHD) 472 x 296 x 264 mm / 18.6 x 11.7 x 10.4 inch
Notes 3600/20294a*
Net weight (2.2 lb = 1 kg) 8.9 kg / 19 lb 9.7 oz (19.604 lb)
Price in first year of sale 520.00 SFr
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Autophon AG (inkl. Téléphonie SA); Solothurn
Here you find 239 models, 178 with images and 146 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
