{gbW: "1400", gbH: "854", mW: "500", mH: "305.0", kb: "305 KB", notes: "For model E-627, Autophon AG (inkl. Téléphonie SA); Solothurn", title: "Autophon AG inkl. E-627 from Siegfried Droese (1)", ite: "1"} {gbW: "1400", gbH: "879", mW: "500", mH: "313.0", kb: "289 KB", notes: "For model E-627, Autophon AG (inkl. Téléphonie SA); Solothurn", title: "Autophon AG inkl. E-627 from Siegfried Droese (1)", ite: "1"} {gbW: "1400", gbH: "963", mW: "500", mH: "343.0", kb: "347 KB", notes: "For model E-627, Autophon AG (inkl. Téléphonie SA); Solothurn", title: "Autophon AG inkl. E-627 from Siegfried Droese (1)", ite: "1"} {gbW: "1400", gbH: "1203", mW: "436.0", mH: "375", kb: "257 KB", notes: "For model E-627, Autophon AG (inkl. Téléphonie SA); Solothurn", title: "Autophon AG inkl. E-627 from Siegfried Droese (1)", ite: "1"} {gbW: "1400", gbH: "982", mW: "500", mH: "350.0", kb: "288 KB", notes: "For model E-627, Autophon AG (inkl. Téléphonie SA); Solothurn", title: "Autophon AG inkl. E-627 from Siegfried Droese (1)", ite: "1"} {gbW: "1400", gbH: "801", mW: "500", mH: "286.0", kb: "212 KB", notes: "For model E-627, Autophon AG (inkl. Téléphonie SA); Solothurn", title: "Autophon AG inkl. E-627 from Siegfried Droese (1)", ite: "1"} {gbW: "933", gbH: "650", mW: "500", mH: "348.0", kb: "65 KB", notes: "For model E-627, Autophon AG (inkl. Téléphonie SA); Solothurn:[br]mit Stationsuhr \"Revue\", Modifikation Anzeigeinstrument & Abschwächer", title: "Autophon AG inkl. E-627 from Martin Bösch (1)", ite: "1"} {gbW: "933", gbH: "604", mW: "500", mH: "323.0", kb: "66 KB", notes: "For model E-627, Autophon AG (inkl. Téléphonie SA); Solothurn:[br]mit Stationsuhr \"Revue\", Modifikationen Anzeigeinstrument & Abschwächer", title: "Autophon AG inkl. E-627 from Martin Bösch (1)", ite: "1"} {gbW: "933", gbH: "568", mW: "500", mH: "304.0", kb: "36 KB", notes: "For model E-627, Autophon AG (inkl. Téléphonie SA); Solothurn:[br]Zubehörfach für Ersatzröhren, Kopfhörer, etc.", title: "Autophon AG inkl. E-627 from Martin Bösch (1)", ite: "1"} {gbW: "930", gbH: "547", mW: "500", mH: "294.0", kb: "52 KB", notes: "For model E-627, Autophon AG (inkl. Téléphonie SA); Solothurn", title: "Autophon AG inkl. E-627 from Anton Gämperle (1)", ite: "1"}

E-627; Autophon AG inkl. (ID = 2276602) Commercial Re

E-627; Autophon AG inkl. (ID = 2276605) Commercial Re

E-627; Autophon AG inkl. (ID = 2276609) Commercial Re

E-627; Autophon AG inkl. (ID = 160177) Commercial Re

Next pictures

Use red slider bar for more.

E-627; Autophon AG inkl. (ID = 2276597) Commercial Re

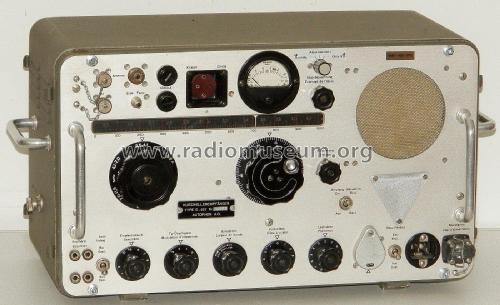

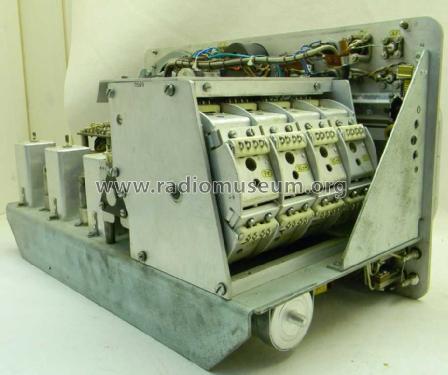

Autophon AG inkl.: E-627 [Commercial Re] ID = 2276597 1400x854

Select picture or schematic to display from thumbnails on the right and click for download.

For model E-627, Autophon AG (inkl. Téléphonie SA); Solothurn

Country:

Switzerland

Manufacturer / Brand:

Autophon AG (inkl. Téléphonie SA); Solothurn

Year: 1954

Category: Commercial Receiver (may include amateur bands)

(Military Equipment (not Re, Tr or RXT) ?)

Valves / Tubes

12: EF43 EAF42 ECH42 EAF42 EAF42 EB41 EAF42 EL42 EAF42 EAF42 EF43 EZ40 150C1

Main principle	to an article Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands	Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage	Alternating Current supply (AC) / 110-250 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.5 cm = 3.7 inch
Power out	1.5 W (unknown quality)
from Radiomuseum.org	Model: E-627 - Autophon AG inkl. Téléphonie
Material	Metal case
Shape	Tablemodel, with any shape - general.
Dimensions (WHD)	510 x 275 x 260 mm / 20.1 x 10.8 x 10.2 inch
Notes	Range 1500-32000 kHz, AM/CW, crystal IF-filter, optional vibrator pack Z627/1 for 6/12 Volts use. Built in clock with seven days mechanical movement.
Net weight (2.2 lb = 1 kg)	19.8 kg / 43 lb 9.8 oz (43.612 lb)
Collectors' prices
Source of data	Radiokatalog Band 2, Ernst Erb
Mentioned in	-- Original-techn. papers.

Model page created by Martin Bösch. See "Data change" for further contributors.

All listed radios etc. from Autophon AG (inkl. Téléphonie SA); Solothurn
Here you find 239 models, 180 with images and 146 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Museum "Sammlung Historisches Übermittlungsmaterial der Schweizer Armee"

Collection of Martin Bösch (CH)

Collection of Anton Gämperle (CH)

Collection of Siegfried Droese (D)

Collection of Markus Müller (CH)

Collection of Christophe Howald (CH)

Forum contributions about this model

Autophon AG inkl.: E-627

Threads: 2 | Posts: 2

Hits: 244 Replies: 0

autophon: Revisionsanleitung E-627

Martin Bösch
24.Aug.19

autophon: Revisionsanleitung E-627

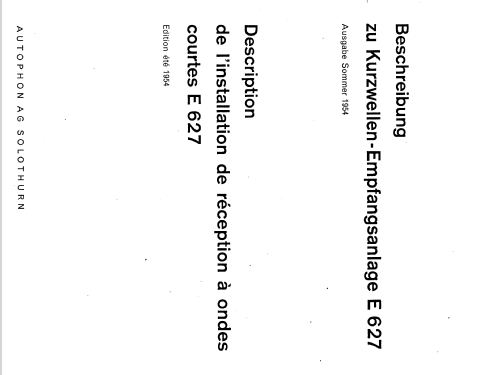

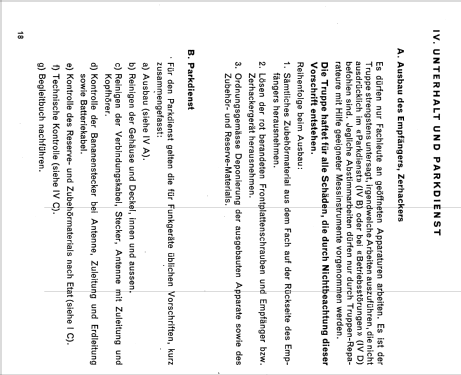

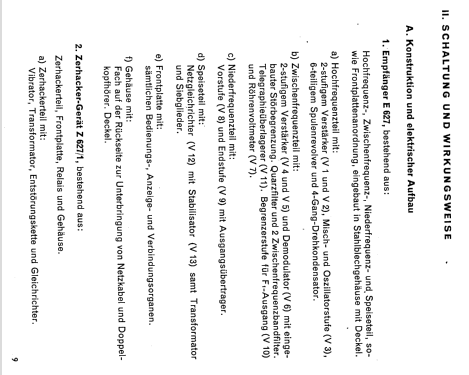

Inzwischen ist die sogenannte Revisionsanleitung, das technische Handbuch mit allen Schemata, auf meiner Website armyradio.wiki verfügbar (17,8 MB!).

Lieber Gruss Martin

Hits: 2071 Replies: 0

autophon: E-627 ; Revisionsanleitung

Martin Bösch
20.Feb.11

autophon: E-627 ; Revisionsanleitung

Auf meiner Website www armyradio.ch habe ich die Bedienungsanleitung für den in der Schweiz recht verbreiteten Kurzwellenempfänger Autophon E-627 bereitgestellt,

das technische Handbuch, die sogenannte "Revisionsanleitung" mit allen Schemata habe ich ebenfalls gescannt und kann sie bei Bedarf in elektronischer Form zusenden, das PDF-File ist allerdings riesig.

Lieber Gruss Martin Boesch
