NF-Telefonrundspruch T2S-1936

NF-Telefonrundspruch T2S-1936; Autophon AG inkl. (ID = 16481) Wired-W
NF-Telefonrundspruch T2S-1936; Autophon AG inkl. (ID = 29749) Wired-W NF-Telefonrundspruch T2S-1936; Autophon AG inkl. (ID = 29750) Wired-W
NF-Telefonrundspruch T2S-1936; Autophon AG inkl. (ID = 29751) Wired-W
Use red slider bar for more.
NF-Telefonrundspruch T2S-1936; Autophon AG inkl. (ID = 29749) Wired-W
Autophon AG inkl.: NF-Telefonrundspruch T2S-1936 [Wired-W] ID = 29749 745x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model NF-Telefonrundspruch T2S-1936, Autophon AG (inkl. Téléphonie SA); Solothurn

Country:  Switzerland
Manufacturer / Brand:  Autophon AG (inkl. Téléphonie SA); Solothurn
Year: 1936–1938 perfect model Category: Wired Receiver (AF only)
Valves / Tubes 3: AC2 AL4 AZ1
Main principle Audio-Amplification; 2 AF stage(s)
Wave bands - without
Details Wired Wireless Receiver(AF only)
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: NF-Telefonrundspruch T2S-1936 - Autophon AG inkl. Téléphonie
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes

auch T2-37-S = PTT-Prospekt

Price in first year of sale 250.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

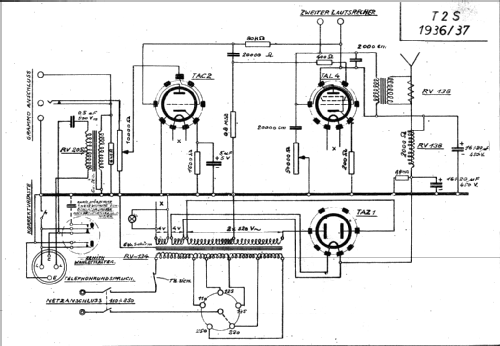

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
