For model 641, Autophon AG (inkl. Téléphonie SA); Solothurn

Country:  Switzerland
Manufacturer / Brand:  Autophon AG (inkl. Téléphonie SA); Solothurn
Year: 1945/1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH21 UCH21 UBL21 AZ11 or AZ1
Main principle Superheterodyne (common); ZF/IF 471 kHz; 2 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: 641 - Autophon AG inkl. Téléphonie

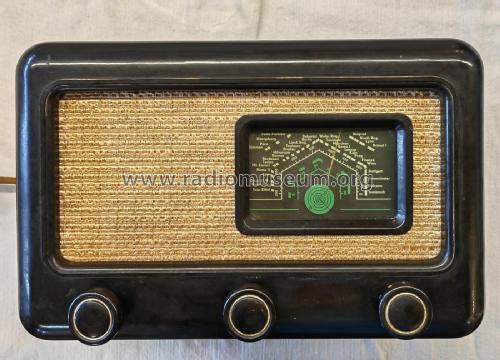

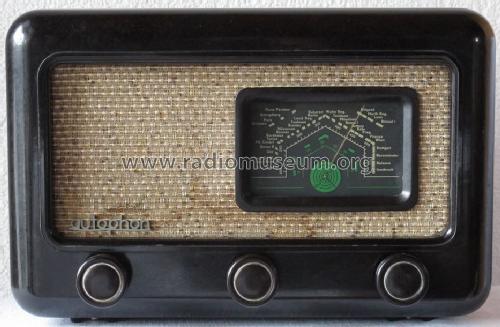

Material Bakelite case
Dimensions (WHD) 300 x 200 x 165 mm / 11.8 x 7.9 x 6.5 inch
Notes

Das Modell 641 von Autophon ist eigentlich ein Philips!

Die Fabrikationsdaten bei Autophon: 3000/20037b+20256

Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.
Mentioned in Radios von gestern, 1. Auflage
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Autophon AG (inkl. Téléphonie SA); Solothurn
Here you find 239 models, 183 with images and 147 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
