Säntis U-RE98

Säntis U-RE98; Autophon AG inkl. (ID = 782892) Radio

Säntis U-RE98; Autophon AG inkl. (ID = 783038) Radio

Säntis U-RE98; Autophon AG inkl. (ID = 783222) Radio

Säntis U-RE98; Autophon AG inkl. (ID = 783040) Radio
Säntis U-RE98; Autophon AG inkl. (ID = 387699) Radio Säntis U-RE98; Autophon AG inkl. (ID = 387701) Radio
Säntis U-RE98; Autophon AG inkl. (ID = 387700) Radio
Use red slider bar for more.
Säntis U-RE98; Autophon AG inkl. (ID = 387699) Radio
Autophon AG inkl.: Säntis U-RE98 [Radio] ID = 387699 746x510
Select picture or schematic to display from thumbnails on the right and click for download.
For model Säntis U-RE98, Autophon AG (inkl. Téléphonie SA); Solothurn

Country:  Switzerland
Manufacturer / Brand:  Autophon AG (inkl. Téléphonie SA); Solothurn
Year: 1955–1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EF89 EM34 EABC80 EL84
Semiconductors (the count is only for transistors) B250C100
Main principle Superheterodyne (common); ZF/IF 471/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Säntis U-RE98 - Autophon AG inkl. Téléphonie
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 338 x 270 mm / 19.7 x 13.3 x 10.6 inch
Notes

Die Gleichrichterröhre des Modells Autophon Säntis U wurde beim Säntis U-RE 98 durch einen Selengleichrichter ersetzt.

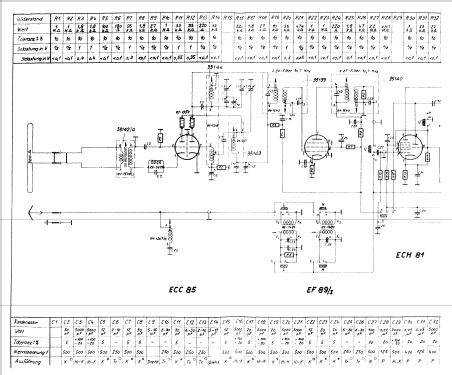

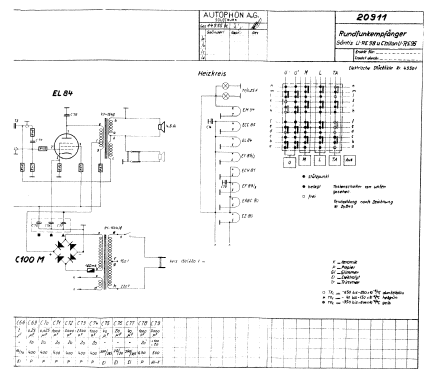

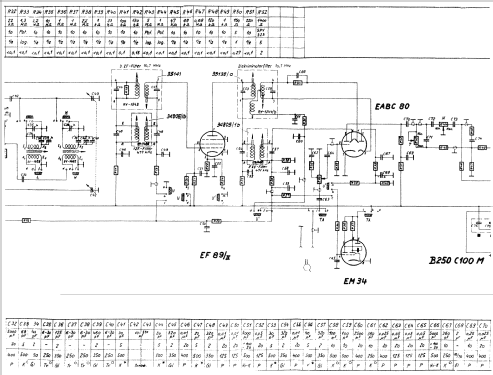

Literature/Schematics (1) -- Schematic

Model page created by Ottmar Lauth. See "Data change" for further contributors.
