• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1980

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 154699

• • Brand: B&O

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Record Player + Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

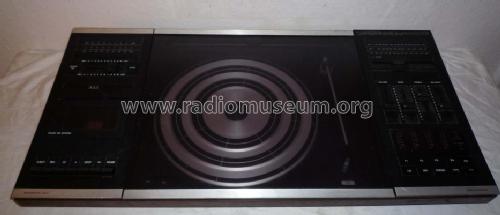

• Model: Beocenter 2000 2101 - Bang & Olufsen B&O; Struer

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 730 x 350 x 125 mm / 28.7 x 13.8 x 4.9 inch

• Notes
• Design-Anlage mit Plattenspieler 33 und 45 UpM, Tonabnehmer mit Abtaster MMC20C und Kassettenrecorder mit Dolby; 2× 25 W an 4 Ω.

• Net weight (2.2 lb = 1 kg)
• 11.2 kg / 24 lb 10.7 oz (24.67 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Andreas Reuther. See "Data change" for further contributors.
