Master 39K

Master 39K; Bang & Olufsen B&O; (ID = 2157713) Radio
Master 39K; Bang & Olufsen B&O; (ID = 85821) Radio Master 39K; Bang & Olufsen B&O; (ID = 85819) Radio
Master 39K; Bang & Olufsen B&O; (ID = 85820) Radio Master 39K; Bang & Olufsen B&O; (ID = 119237) Radio
Master 39K; Bang & Olufsen B&O; (ID = 167376) Radio Master 39K; Bang & Olufsen B&O; (ID = 167377) Radio
Master 39K; Bang & Olufsen B&O; (ID = 167378) Radio Master 39K; Bang & Olufsen B&O; (ID = 167379) Radio
Master 39K; Bang & Olufsen B&O; (ID = 168021) Radio Master 39K; Bang & Olufsen B&O; (ID = 1637278) Radio
Use red slider bar for more.
Master 39K; Bang & Olufsen B&O; (ID = 85821) Radio
Bang & Olufsen B&O;: Master 39K [Radio] ID = 85821 933x516.065625
Select picture or schematic to display from thumbnails on the right and click for download.
For model Master 39K, Bang & Olufsen (B&O); Struer

Country:  Denmark
Manufacturer / Brand:  Bang & Olufsen (B&O); Struer
Brand

B&O
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: CCH2 EF5 EBC3 CL4 EM1 CY1
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage AC/DC-set
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Master 39K - Bang & Olufsen B&O; Struer
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 590 x 320 x 270 mm / 23.2 x 12.6 x 10.6 inch

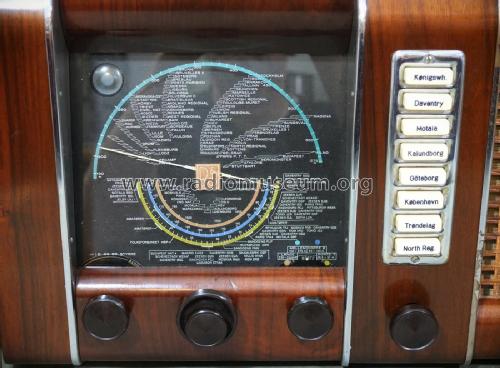

Notes 8 Festsendertasten senkrecht zwischen Skala und Lautsprecher angeordnet. LW:750-2000m, MW:190-575m, KW:16,5-51m und 65-100m. Plattenspieleranschluß.
Price in first year of sale 395.00 KR
External source of data B&O Katalog (1943)

Model page created by Hermann Jung. See "Data change" for further contributors.



All listed radios etc. from Bang & Olufsen (B&O); Struer
Here you find 451 models, 383 with images and 255 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
