Radiobell RB511 AM

Bell Telephone Mfg. Co. (Radiobell); Antwerp

Data
Forum
Pictures
Collections

  • Year
  • 1954 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 251055
    • Brand: Radiobell

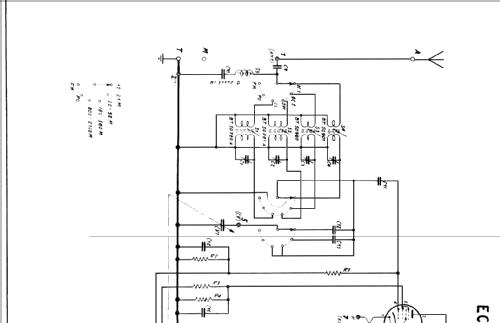

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Ready for FM, has Broadcast, Long Wave, several Short Wave.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 115; 125; 135; 150; 220; 250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Radiobell RB511 AM - Bell Telephone Mfg. Co.
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 830 x 470 x 400 mm / 32.7 x 18.5 x 15.7 inch
  • Notes

  • Wave bands:

    • LW: 750 - 2200 m
    • MW: 180 - 580 m
    • SW1: 20 - 52 m
    • SW2: 12 - 21 m.

    FM unit (with 4 x EF80) can be retrofitted (86 - 108 MHz), converting this model into Radiobell model RB511 AM-FM.

  • Price in first year of sale
  • 9,500.00 BFr
  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by Hugo Sneyers. See "Data change" for further contributors.
