Bell Standard 538 dark scale

Bell Standard 538; Bell Standard (ID = 1319951) Radio Bell Standard 538; Bell Standard (ID = 1408554) Radio
Bell Standard 538; Bell Standard (ID = 1408557) Radio
Use red slider bar for more.
Bell Standard 538; Bell Standard (ID = 1319951) Radio
Bell Standard: Bell Standard 538 [Radio] ID = 1319951 930x697
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bell Standard 538 dark scale, Bell Standard Telephon & Radio AG (STR), Telephone Manufacturing Co,; Zürich, Bern etc.

Country:  Switzerland
Manufacturer / Brand:  Bell Standard Telephon & Radio AG (STR), Telephone Manufacturing Co,; Zürich, Bern etc.
Year: 1938 ? Category: Broadcast Receiver - or past WW2 Tuner

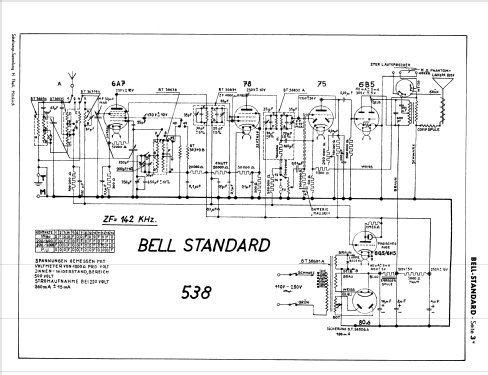

Valves / Tubes 6A7 78 75 6B5 6G5 80
Main principle Superheterodyne (common); ZF/IF 142 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Bell Standard 538 [dark scale] - Bell Standard Telephon & Radio
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 610 x 370 x 280 mm / 24 x 14.6 x 11 inch
Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)

Model page created by Piotr Jachymczyk. See "Data change" for further contributors.



All listed radios etc. from Bell Standard Telephon & Radio AG (STR), Telephone Manufacturing Co,; Zürich, Bern etc.
Here you find 11 models, 5 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Bell Standard: Bell Standard 538
Threads: 1 | Posts: 6
Hits: 1807     Replies: 5
bell: 149; Standard
Piotr Jachymczyk
01.Mar.13
  1

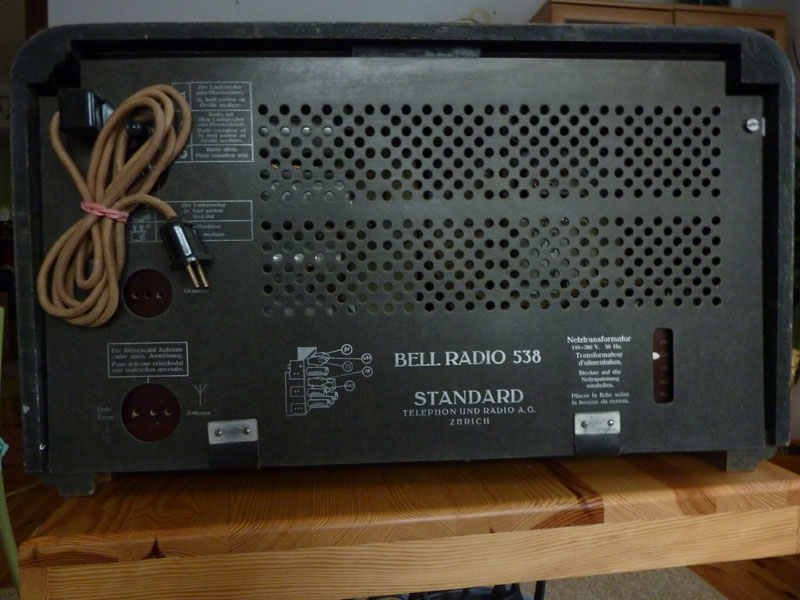

Why the name of this radio changed to 149? As you can see on the picture of rear wall from my model - it is 538.

Attachments

Wolfgang Bauer
02.Mar.13
  2

Hallo Mr. Jachymczyk,

your radio is the ==> Bell Radio 538.
Which is very similar to the model ==> Bell Standard.
Look at the scale. The scale at the Bell Radio 538 is bright, at the Bell Standard dark.
Please show the front of your model.

Regards WB.

Piotr Jachymczyk
02.Mar.13
  3

Hmm, in my model scale is dark - as you can see in the last picture in the gallery. But it does seem like the rear wall is original, there's no signs that it was changed.

Also noticeable difference is in the mouting of loudspeaker - in my model it is hold by wooden bar, not screwed. And there are small differences under the chassis(comparing to Bell Standard), so maybe this was variant of 538 with dark scale?

Regards
PJ

Attachments

Wolfgang Bauer
02.Mar.13
  4

Hallo Mr. Jachymczyk,

please create a new model "Bell Radio 538", variant "scale dark, dunkle Skala".
Probably there were many different versions of this model.
The same chassis you can find in Belgium Radiobell 538.

Regards WB.

Walter Haring
03.Mar.13
  5

Hallo

Einen Grund für die Modellbezeichnung Standard 149 kann ich auch nicht erkennen. Wenn man schon auf die Bezeichnung auf der Rückwand (und der Skala!) abstellen will, müsste das Modell "Bell Standard" heissen.

Gemäss der Firmengeschichte von Standard Telephon und Radio AG (Rene Casutt und Armin F. Egli. 1996) gab es die Modelle 537, 538 und 539 - je mit einer Wechselstromversion und einer Allstromversion sowie je einer TR-Variante bei der Wechselstromversionen. Schaltpläne, die mir vorliegen, dokumentieren den 537 in Wechselstrom und Allstrom-Ausführung und die 538 und 539 in Wechselstromausführung.

Auch ist dokumentiert, dass im Jahr 1938 der Vertrieb von der Belton AG zur Radio Steiner AG überging.

Wie die Bilder der "Standard 149" Geräte dokumentieren, wurden diese Geräte alle über Steiner ausgeliefert und haben wohl auf Wunsch von Steiner andere Rückwände / Bezeichnung erhalten.

Das Gerät von Herrn Jachymczyk ist auf Grund der Bilder meines Erachtens klar ein Modell 538 (Wechselstrom). Ob man auf Grund der anderen Skala ein neues Modell anlegen will, hat Herr Bauer schon vorgegeben.

Freundliche Grüsse, Walter Haring



Hello

I can't find a reason for the use of the model designation "Standard 149". Using the back cover (or name in the scale would lead to the use of "Bell Standard".

According the research about the Standard Telephon und Radio AG company's history (by Rene Casutt und Armin F. Egli. 1996), the models 537, 538 und 539 - were made, each in a alternating and all current version as well as each alternation current version additional available with low frequency telephone radio transmission adapter. I habe schematics of the alternating and all current version of the 537 and of the alternation current version of the 538 and 539.

It's also documented, that in 1938 the sales office changed from Belton Ltd to Radio Steiner Ltd.

The pictures of the "Standard 149" are documenting, that all these radios were sold over Steiner and i think that Steiner ordered other back covers at the factory.

The radio von Mr. Jachymczyk is, according to his pictures, a model 538 (~ version). Mr. Bauer already stated, that because of the different dial scale a new model should be created.

Regards, Walter Haring

Piotr Jachymczyk
03.Mar.13
  6

So I created new model, if the weather is fine in the next few days I'll take exact pictures.

And thank you for interesting info - it's always good to know more about rather obscure models.

Best regards

Piotr
