3GW448LV

3GW448LV; Blaupunkt Ideal, (ID = 1042020) Radio
3GW448LV; Blaupunkt Ideal, (ID = 376778) Radio 3GW448LV; Blaupunkt Ideal, (ID = 376779) Radio
3GW448LV; Blaupunkt Ideal, (ID = 376780) Radio 3GW448LV; Blaupunkt Ideal, (ID = 376781) Radio
3GW448LV; Blaupunkt Ideal, (ID = 376783) Radio 3GW448LV; Blaupunkt Ideal, (ID = 376784) Radio
3GW448LV; Blaupunkt Ideal, (ID = 1017864) Radio
Use red slider bar for more.
3GW448LV; Blaupunkt Ideal, (ID = 376778) Radio
Blaupunkt Ideal,: 3GW448LV [Radio] ID = 376778 590x347

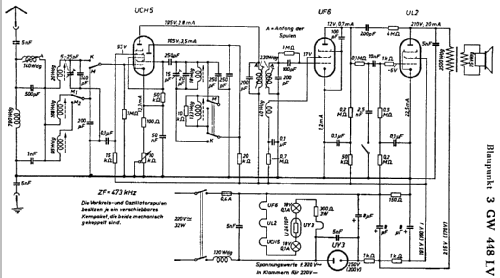

Select picture or schematic to display from thumbnails on the right and click for download.
For model 3GW448LV, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1949 ? Category: Broadcast Receiver - or past WW2 Tuner

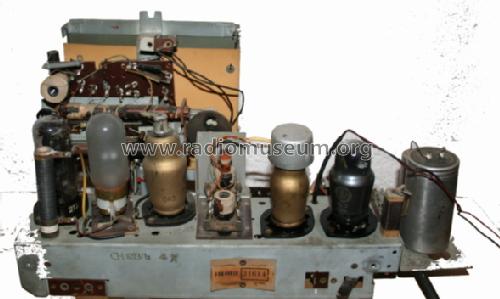

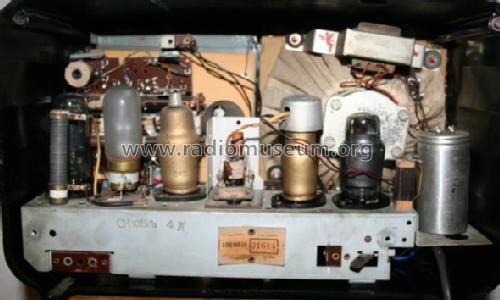

Valves / Tubes 4: UCH5 UF6 UL2_Valvo UY3 U2410P
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: 3GW448LV - Blaupunkt Ideal, Berlin,

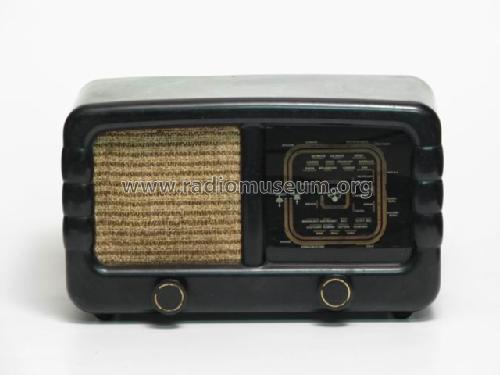

Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 370 x 220 x 170 mm / 14.6 x 8.7 x 6.7 inch
Notes Auf der Skala st außerdem noch UKW mit 2.8m - 3.4m abgebildet! Wellenschalter aber nur mit 1020m - 2000m und 185m - 580m dargestellt!
Net weight (2.2 lb = 1 kg) 4.6 kg / 10 lb 2.1 oz (10.132 lb)
Collectors' prices
Source of data - - Data from my own collection

Model page created by Jürgen Bauch. See "Data change" for further contributors.
