• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1935–1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 540

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

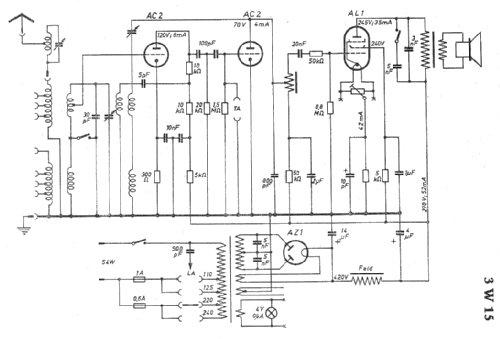

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• AC2 AC2 AL1 AZ1

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 3W15 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 427 x 356 x 285 mm / 16.8 x 14 x 11.2 inch

• Notes
• Pultskala

• Net weight (2.2 lb = 1 kg)
• 13.4 kg / 29 lb 8.2 oz (29.515 lb)

• Price in first year of sale
• 184.00 RM

• Source of data
• Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• HandB.d.d.Rundfunk-Handels 1936/37

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
