4GW646 Edyn-LS

4GW646; Blaupunkt Ideal, (ID = 7301) Radio

4GW646; Blaupunkt Ideal, (ID = 165484) Radio

4GW646; Blaupunkt Ideal, (ID = 165483) Radio

4GW646; Blaupunkt Ideal, (ID = 165478) Radio

4GW646; Blaupunkt Ideal, (ID = 165485) Radio

4GW646; Blaupunkt Ideal, (ID = 614974) Radio

4GW646; Blaupunkt Ideal, (ID = 1384702) Radio

4GW646; Blaupunkt Ideal, (ID = 1541831) Radio
4GW646; Blaupunkt Ideal, (ID = 124725) Radio 4GW646; Blaupunkt Ideal, (ID = 124726) Radio

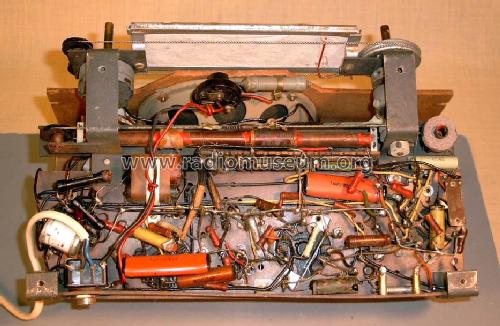

4GW646; Blaupunkt Ideal, (ID = 124727) Radio 4GW646; Blaupunkt Ideal, (ID = 124728) Radio
4GW646; Blaupunkt Ideal, (ID = 124729) Radio 4GW646; Blaupunkt Ideal, (ID = 124730) Radio
4GW646; Blaupunkt Ideal, (ID = 1384751) Radio 4GW646; Blaupunkt Ideal, (ID = 1384753) Radio
4GW646; Blaupunkt Ideal, (ID = 1384756) Radio 4GW646; Blaupunkt Ideal, (ID = 1384758) Radio
Use red slider bar for more.
4GW646; Blaupunkt Ideal, (ID = 124725) Radio
Blaupunkt Ideal,: 4GW646 [Radio] ID = 124725 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4GW646 Edyn-LS, Blaupunkt (Ideal), Berlin, später Hildesheim:
Gerät aus Sammlung Hauke Heinrich

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH11 UBF11 UCL11 UY11
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 4GW646 [Edyn-LS] - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 300 x 175 x 200 mm / 11.8 x 6.9 x 7.9 inch
Notes

L-Abstimmung, auch mit Perm.-Dyn. Lautsprecher.

Net weight (2.2 lb = 1 kg) 3.8 kg / 8 lb 5.9 oz (8.37 lb)
Price in first year of sale 540.00 RM
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + Schenk Heft 29 von 1947
Mentioned in Funkschau (4705)
Literature/Schematics (1) Lange / Nowisch, "Empfängerschaltungen der Radioindustrie" (Band 1, 5. Aufl., S. 193)
