4W649H - 4W649H/B; Blaupunkt Ideal, (ID = 90548) Radio

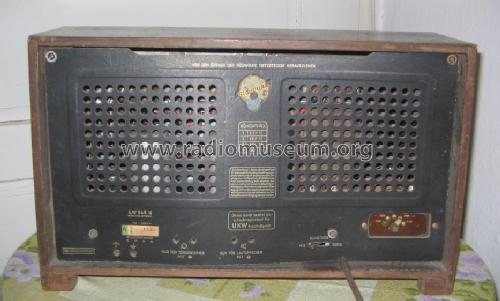

Blaupunkt Ideal,: 4W649H - 4W649H/B [Radio] ID = 90548 933x579
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4W649H - 4W649H/B Lautsprecherrahmen abgerundet, Blaupunkt (Ideal), Berlin, später Hildesheim:
4W649H 2.jpg

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner

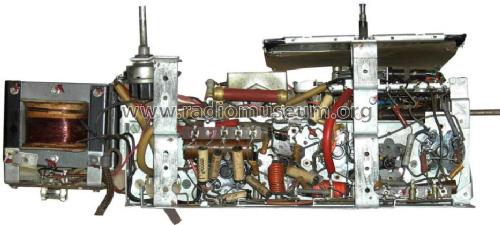

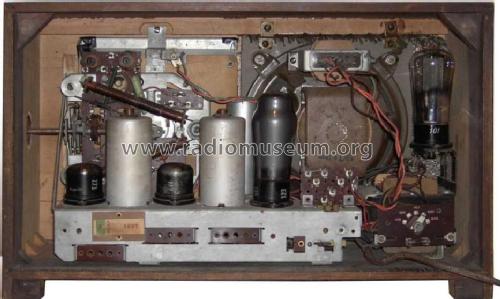

Valves / Tubes 4: ECH11 EBF11 ECL11 AZ11
Main principle Super-Heterodyne (Super in general); ZF/IF 473 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, Short wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 4W649H - 4W649H/B [Lautsprecherrahmen abgerundet] - Blaupunkt Ideal, Berlin,
Material Wooden case
Dimensions (WHD) 460 x 280 x 185 mm / 18.1 x 11 x 7.3 inch
Notes [639391]
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Price in first year of sale 325.00 DM
Collectors' prices
Source of data Illustrierter Rundfunk Kat. 1949 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 2
Mentioned in Funkschau (4914)
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
