5GW68; Blaupunkt Ideal, (ID = 109) Radio
Blaupunkt Ideal,: 5GW68 [Radio] ID = 109 670x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5GW68, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CK1 CF3 CBC1 CL4 optional AZ1 U2020
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 5GW68 - Blaupunkt Ideal, Berlin,
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 525 x 369 x 243 mm / 20.7 x 14.5 x 9.6 inch
Notes variable Bandbreite; Pult-Skala
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 221.00 RM
Collectors' prices
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

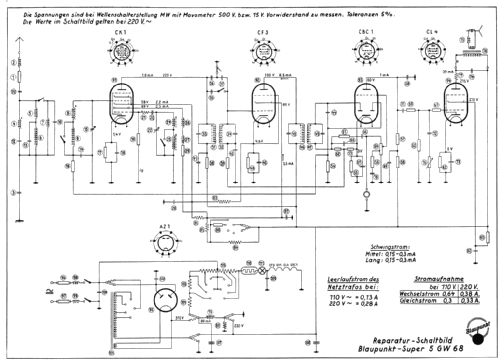

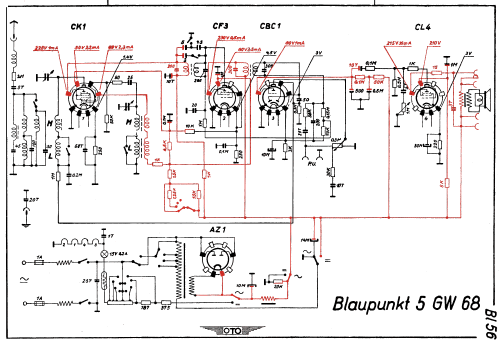

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung

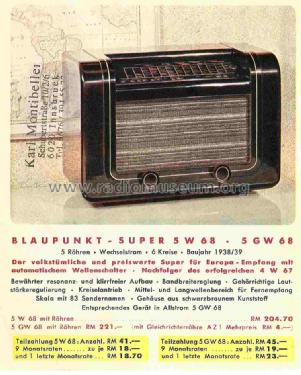

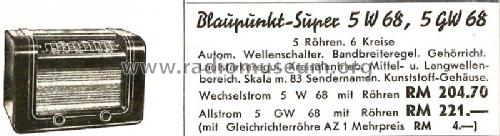

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
