5W646 ab Nr. 18684

5W646; Blaupunkt Ideal, (ID = 1263196) Radio

5W646; Blaupunkt Ideal, (ID = 1263198) Radio
5W646; Blaupunkt Ideal, (ID = 1263188) Radio 5W646; Blaupunkt Ideal, (ID = 1263189) Radio

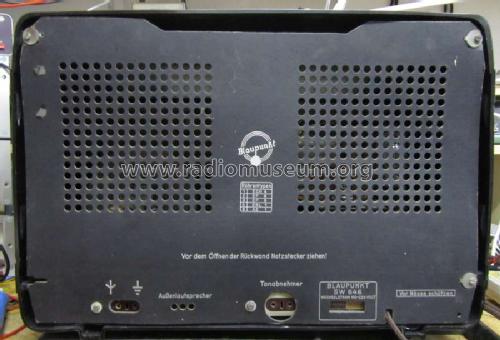

5W646; Blaupunkt Ideal, (ID = 1465788) Radio 5W646; Blaupunkt Ideal, (ID = 1263192) Radio
5W646; Blaupunkt Ideal, (ID = 1263190) Radio 5W646; Blaupunkt Ideal, (ID = 1263191) Radio

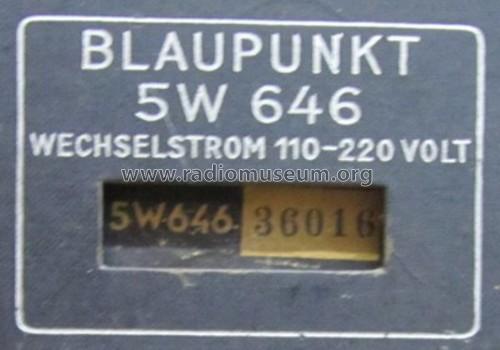

5W646; Blaupunkt Ideal, (ID = 1263193) Radio 5W646; Blaupunkt Ideal, (ID = 1263194) Radio
5W646; Blaupunkt Ideal, (ID = 1263350) Radio 5W646; Blaupunkt Ideal, (ID = 1465764) Radio
Use red slider bar for more.
5W646; Blaupunkt Ideal, (ID = 1263188) Radio
Blaupunkt Ideal,: 5W646 [Radio] ID = 1263188 900x745
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5W646 ab Nr. 18684, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1946–1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH4 EF9 or AF3 EF9 or AF7 EBL1 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 473 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: 5W646 [ab Nr. 18684] - Blaupunkt Ideal, Berlin,
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 360 x 245 mm / 16.9 x 14.2 x 9.6 inch
Notes

Schwundausgleich auf 2 Röhren wirkend, 4 stufige Tonblende, Anschlüsse für TA und Zweitlautsprecher

Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + Schenk Nr. 30 von 1948
Mentioned in Funkschau (4807)
Literature/Schematics (1) Lange / Nowisch, "Empfängerschaltungen der Radioindustrie" (Band 1 S.179 (5. Aufl. 1954))
