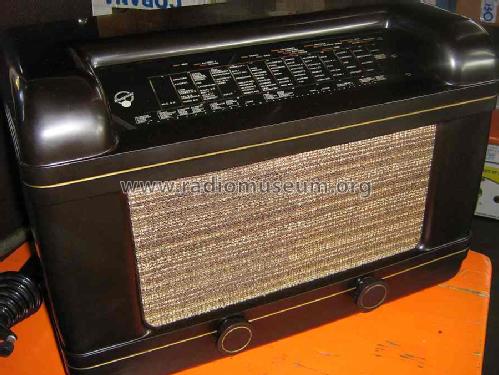

Blaupunkt Ideal,: 5W69K [Radio] ID = 707770 700x522
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5W69K, Blaupunkt (Ideal), Berlin, später Hildesheim:
Bild zum gleich aussehenden Modell automatisch kopiert statt wie bisher verknüpft (05.Jan.2010 EE).

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH11 EBF11 ECL11 AZ11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 5W69K - Blaupunkt Ideal, Berlin,
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 372 x 263 mm / 21.7 x 14.6 x 10.4 inch
Net weight (2.2 lb = 1 kg) 12.4 kg / 27 lb 5 oz (27.313 lb)
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + Schenk
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
