6W69H; Blaupunkt Ideal, (ID = 118441) Radio

6W69H; Blaupunkt Ideal, (ID = 118442) Radio

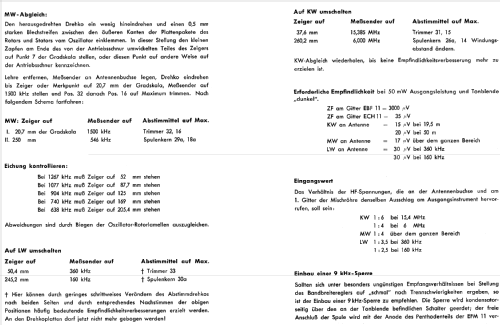

6W69H; Blaupunkt Ideal, (ID = 118443) Radio

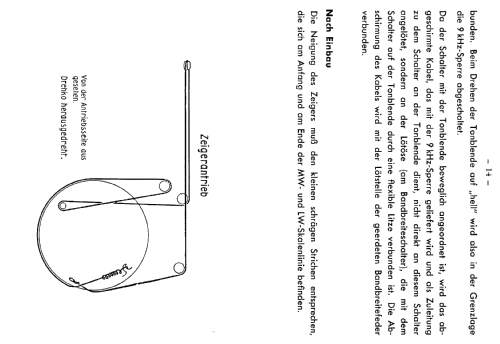

6W69H; Blaupunkt Ideal, (ID = 118444) Radio

6W69H; Blaupunkt Ideal, (ID = 118445) Radio

6W69H; Blaupunkt Ideal, (ID = 118446) Radio

6W69H; Blaupunkt Ideal, (ID = 118447) Radio

6W69H; Blaupunkt Ideal, (ID = 118448) Radio

6W69H; Blaupunkt Ideal, (ID = 118453) Radio

6W69H; Blaupunkt Ideal, (ID = 118451) Radio
6W69H; Blaupunkt Ideal, (ID = 3277) Radio 6W69H; Blaupunkt Ideal, (ID = 29965) Radio
6W69H; Blaupunkt Ideal, (ID = 131811) Radio 6W69H; Blaupunkt Ideal, (ID = 75094) Radio
6W69H; Blaupunkt Ideal, (ID = 120) Radio 6W69H; Blaupunkt Ideal, (ID = 88473) Radio
6W69H; Blaupunkt Ideal, (ID = 88474) Radio 6W69H; Blaupunkt Ideal, (ID = 125) Radio
6W69H; Blaupunkt Ideal, (ID = 556490) Radio 6W69H; Blaupunkt Ideal, (ID = 556491) Radio
Use red slider bar for more.

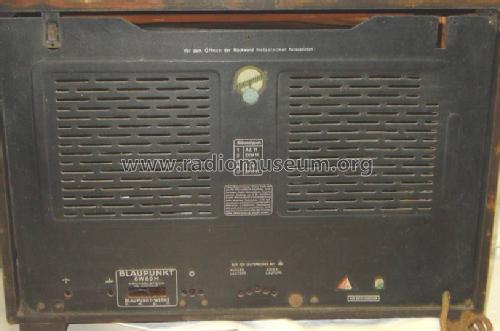

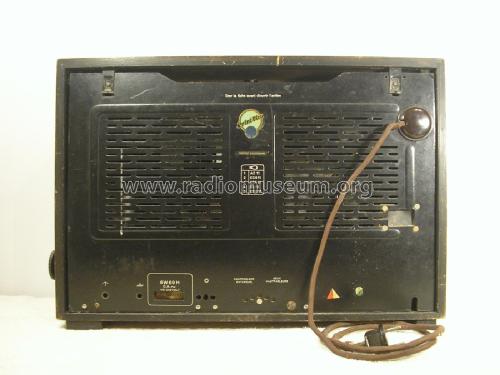

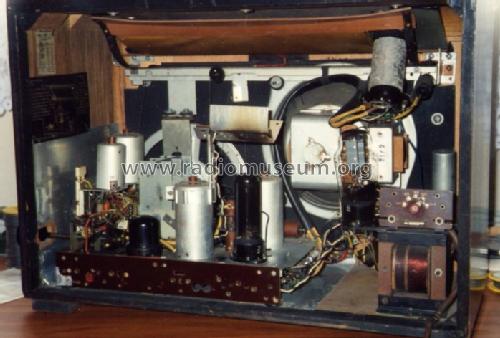

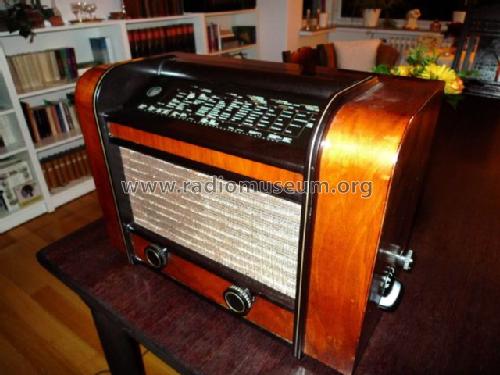

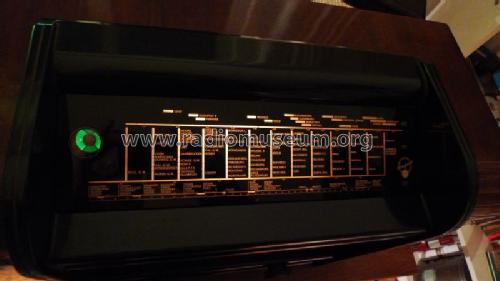

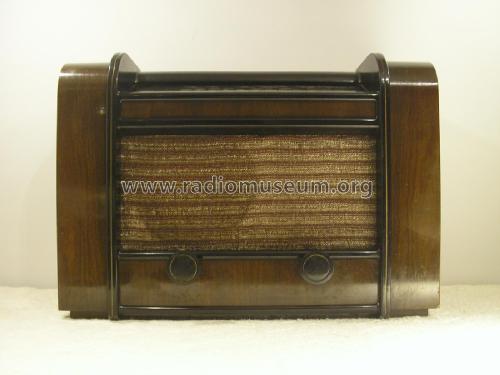

6W69H; Blaupunkt Ideal, (ID = 3277) Radio
Blaupunkt Ideal,: 6W69H [Radio] ID = 3277 660x511
Select picture or schematic to display from thumbnails on the right and click for download.
For model 6W69H, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 EL11 AZ11 EFM11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: 6W69H - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 552 x 378 x 267 mm / 21.7 x 14.9 x 10.5 inch
Notes variable Bandbreite . Auch geliefert mit ZF 473 kHz (laut dementsprechende Aufdruck am Chassis). 150 Volt Netzspannung verfügbar mittels Sonderausführung.
Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)
Price in first year of sale 230.00 RM
Source of data Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Schenk-Regelien und FS-Bestückungstab.
