• Year
  • 1960/1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 327721
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

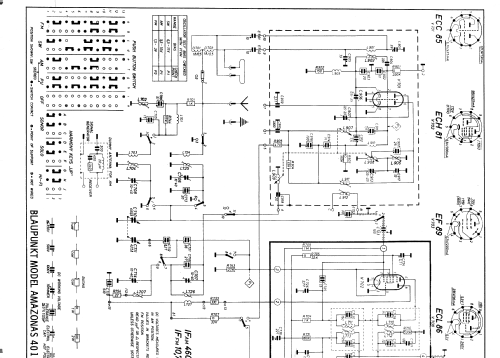

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105-120 Volt
  • Loudspeaker
  • 6 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Amazonas 40123 Ch= 10123 - Blaupunkt Ideal, Berlin,
  • Shape
  • Console with Push Buttons.
  • Notes
  • Blaupunkt Amazonas 40123 mit Chassis 10123 ist ein Exportmodell für die USA. Stereo-NF-Verstärker mit 2 Eintakt-Endstufen.

  • Literature/Schematics (1)
  • - - Manufacturers Literature (Technisches Rundschreiben 3/65 Truhenliste 1957-64)
  • Author
  • Model page created by Richard Winter. See "Data change" for further contributors.
