For model Amazonas-Vollstereo 4610 dunkel, Blaupunkt (Ideal), Berlin, später Hildesheim:
Q: Blaupunkt Service

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF89 EABC80 EM84 EBC91 EL84 EL84
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Amazonas-Vollstereo 4610 [dunkel] - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 810 x 850 x 390 mm / 31.9 x 33.5 x 15.4 inch
Notes

dunkel hochglanzpoliert

Plattenwechsler: Perpetuum Ebner REX A 59 Stereo

Net weight (2.2 lb = 1 kg) 27.5 kg / 60 lb 9.2 oz (60.573 lb)
Price in first year of sale 690.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1959/60


All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
Here you find 3196 models, 2875 with images and 2201 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Blaupunkt Ideal,: Amazonas-Vollstereo 4610
Threads: 1 | Posts: 2
Hits: 1116     Replies: 1
blaupunkt: 4610; Amazonas-Vollstereo
Alfred Pugliese
15.Jun.14
  1

Hi all... Trying to clean the contacts on switches and pots. Before I break something,... How do you get the chasis out of cabinet? Are there hidden screws?   Thanks  Alfred

Alfred Pugliese
19.Jun.14
  2

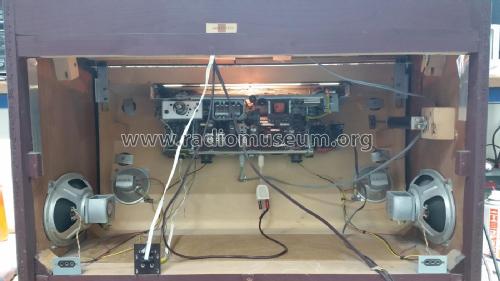

I have figured it out. The front decorative panel has to be removed, to get to the screws that secure the chasis. The front panel is secured by 4 nuts that hold metal clips. I hope this helps someone in the future. Thanks and have a great summer!     Alfred
