Arkansas 59 4531 hell, Türen

Blaupunkt (Ideal), Berlin, später Hildesheim

  • Year
  • 1958/1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 21801
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

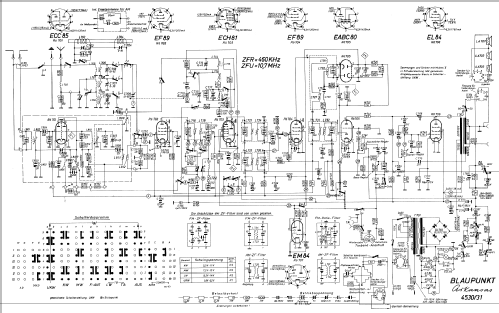

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage; ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     12 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 155; 220-240 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Arkansas 59 4531 [hell, Türen] - Blaupunkt Ideal, Berlin,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 1175 x 890 x 445 mm / 46.3 x 35 x 17.5 inch
  • Notes
  • Technische Ausführung wie Arkansas 59 4530, jedoch statt Glasvitrine mit 3 Holzschiebetüren.

  • Net weight (2.2 lb = 1 kg)
  • 45.5 kg / 100 lb 3.5 oz (100.22 lb)
  • Price in first year of sale
  • 880.00 DM
  • External source of data
  • Erb
  • Mentioned in
  • -- Original-techn. papers.
