Ballett 20013; Blaupunkt Ideal, (ID = 551995) Radio
Blaupunkt Ideal,: Ballett 20013 [Radio] ID = 551995 668x437
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ballett 20013, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EF89 EABC80 EL84
Semiconductors (the count is only for transistors) B250C70
Main principle Superheterodyne (common); Export model
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Ballett 20013 - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 320 x 210 x 190 mm / 12.6 x 8.3 x 7.5 inch
Notes

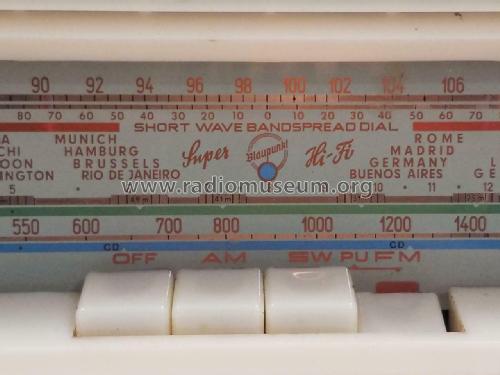

Blaupunkt Ballett 20013 is an export model with the following wavebands:

FM = 87.6 - 108 MHz
SW = 5.0 - 13 MHz
AM = 515 - 1629 kHz

Elliptic speaker 155 x 96 mm.

See also Ballett 20003 with the same schematic but in plastic cabinet.

Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)

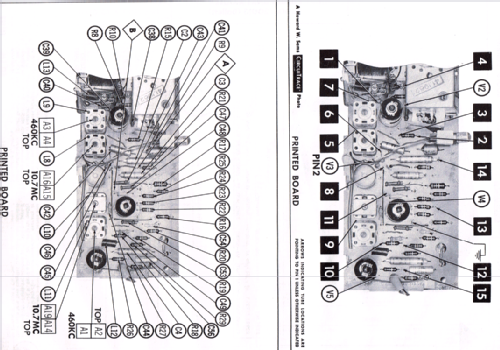

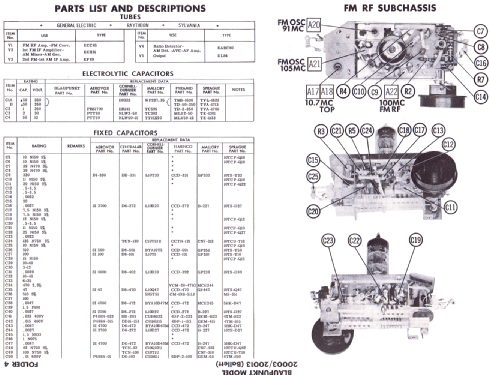

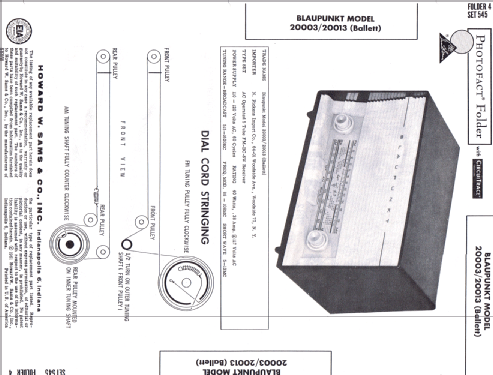

Literature/Schematics (4) Photofact Folder, Howard W. SAMS (date 9-61, set 545, folder 4.)

Model page created by Ashis Mukerjea. See "Data change" for further contributors.
