F510WH; Blaupunkt Ideal, (ID = 2424710) Radio

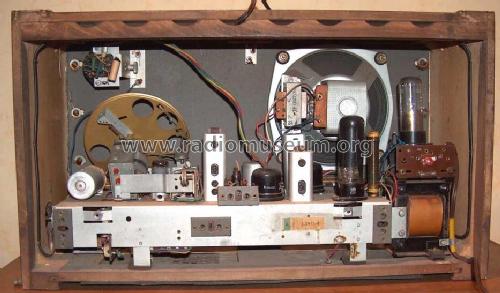

Blaupunkt Ideal,: F510WH [Radio] ID = 2424710 1400x833
Select picture or schematic to display from thumbnails on the right and click for download.
For model F510WH, Blaupunkt (Ideal), Berlin, später Hildesheim:
Inventar Nummer 65

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECH42 EF80 EBF15 EAA11 EM11 EL11 AZ11
Main principle Super-Heterodyne (Super in general); ZF/IF 473/10700 kHz; 2 AF stage(s); Reflex
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch
Power out
from Radiomuseum.org Model: F510WH - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 325 x 275 mm / 22 x 12.8 x 10.8 inch
Notes Blaupunkt F510WH. Bei UKW arbeitet die EF80 in der von Blaupunkt bezeichneten Triplex-Schaltung: HF-Vorstufe, 1. ZF-Stufe, NF-Vorstufe. Diese Röhre hat hier also drei Funktionen (Reflex + NF-Vorstufe).
Net weight (2.2 lb = 1 kg) 12.5 kg / 27 lb 8.5 oz (27.533 lb)
Price in first year of sale 378.00 DM
Collectors' prices
Source of data Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 1, Ernst Erb
