Granada 20300

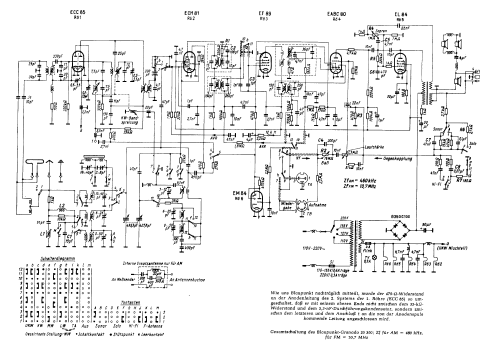

Granada 20300; Blaupunkt Ideal, (ID = 14726) Radio

Granada 20300; Blaupunkt Ideal, (ID = 286577) Radio

Granada 20300; Blaupunkt Ideal, (ID = 286578) Radio

Granada 20300; Blaupunkt Ideal, (ID = 286579) Radio

Granada 20300; Blaupunkt Ideal, (ID = 286580) Radio

Granada 20300; Blaupunkt Ideal, (ID = 286581) Radio

Granada 20300; Blaupunkt Ideal, (ID = 286582) Radio
Granada 20300; Blaupunkt Ideal, (ID = 14706) Radio Granada 20300; Blaupunkt Ideal, (ID = 14707) Radio
Granada 20300; Blaupunkt Ideal, (ID = 14708) Radio Granada 20300; Blaupunkt Ideal, (ID = 241175) Radio
Granada 20300; Blaupunkt Ideal, (ID = 446027) Radio Granada 20300; Blaupunkt Ideal, (ID = 446028) Radio
Granada 20300; Blaupunkt Ideal, (ID = 854902) Radio Granada 20300; Blaupunkt Ideal, (ID = 854903) Radio
Granada 20300; Blaupunkt Ideal, (ID = 854904) Radio Granada 20300; Blaupunkt Ideal, (ID = 854905) Radio
Use red slider bar for more.

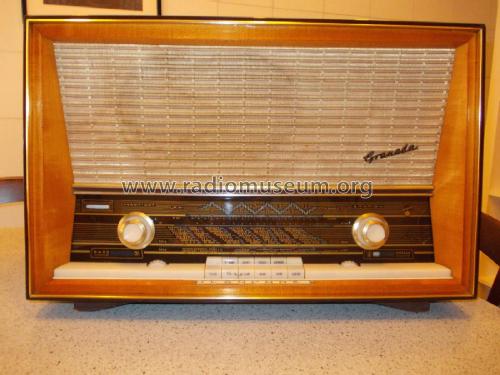

Granada 20300; Blaupunkt Ideal, (ID = 14706) Radio
Blaupunkt Ideal,: Granada 20300 [Radio] ID = 14706 933x672
Select picture or schematic to display from thumbnails on the right and click for download.
For model Granada 20300, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 155; 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Granada 20300 - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 580 x 380 x 250 mm / 22.8 x 15 x 9.8 inch
Notes Edel-Holzgehäuse in Macore dunkel, oder Nußbaum hell, mattiert.
Net weight (2.2 lb = 1 kg) 10.2 kg / 22 lb 7.5 oz (22.467 lb)
Price in first year of sale 319.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1960/61
