Granada 21300

Granada 21300; Blaupunkt Ideal, (ID = 346968) Radio

Granada 21300; Blaupunkt Ideal, (ID = 346969) Radio

Granada 21300; Blaupunkt Ideal, (ID = 346970) Radio

Granada 21300; Blaupunkt Ideal, (ID = 346971) Radio

Granada 21300; Blaupunkt Ideal, (ID = 346973) Radio

Granada 21300; Blaupunkt Ideal, (ID = 346972) Radio
Granada 21300; Blaupunkt Ideal, (ID = 56569) Radio Granada 21300; Blaupunkt Ideal, (ID = 56573) Radio
Granada 21300; Blaupunkt Ideal, (ID = 56570) Radio Granada 21300; Blaupunkt Ideal, (ID = 56571) Radio
Granada 21300; Blaupunkt Ideal, (ID = 56572) Radio Granada 21300; Blaupunkt Ideal, (ID = 554969) Radio
Granada 21300; Blaupunkt Ideal, (ID = 963035) Radio Granada 21300; Blaupunkt Ideal, (ID = 1384663) Radio
Granada 21300; Blaupunkt Ideal, (ID = 1384664) Radio Granada 21300; Blaupunkt Ideal, (ID = 1384665) Radio
Use red slider bar for more.
Granada 21300; Blaupunkt Ideal, (ID = 56569) Radio
Blaupunkt Ideal,: Granada 21300 [Radio] ID = 56569 932x619
Select picture or schematic to display from thumbnails on the right and click for download.
For model Granada 21300, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM87 ELL80
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 155; 220 Volt
Loudspeaker 3 Loudspeakers
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Granada 21300 - Blaupunkt Ideal, Berlin,
Material Wooden case

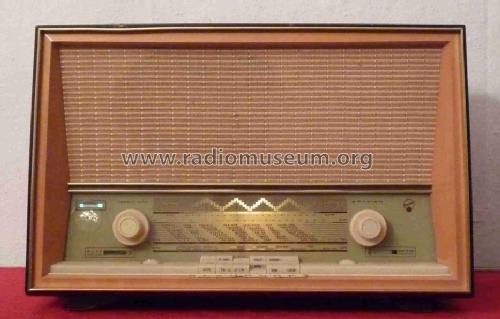

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 580 x 380 x 250 mm / 22.8 x 15 x 9.8 inch
Notes Dreh- und abschaltbare Ferritantenne.
Telefunken-UKW-Mischteil mit Variometerabstimmung, gekoppelt mit Kurzwellen-Lupe.
Net weight (2.2 lb = 1 kg) 10.4 kg / 22 lb 14.5 oz (22.907 lb)
Price in first year of sale 375.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1961/62

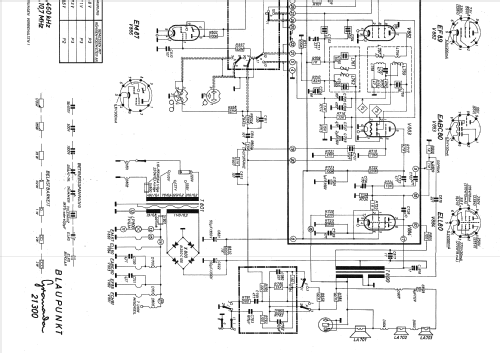

Literature/Schematics (1) -- Original-techn. papers.
