London H4053 ECC81 EM80

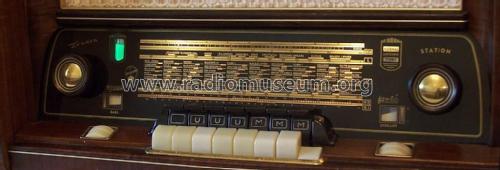

Blaupunkt Ideal,: London H4053 [Radio] ID = 2605442 1024x704
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934) | ||||
|---|---|---|---|---|---|
Brand |
Rotstern | ||||
| Year: 1953/1954 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 8: ECC81 EC92 EF85 EF85 EM80 EAA91 EAF42 EL12 | ||||
| Semiconductors (the count is only for transistors) | B250C140 |
| Main principle | Superhet with RF-stage; ZF/IF 450/10700 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 9 AM circuit(s) 11 FM circuit(s) |
| Wave bands | Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-125; 220-240 Volt |
| Loudspeaker | 3 Loudspeakers |
| Power out | 8 W (unknown quality) |
| from Radiomuseum.org | Model: London H4053 [ECC81 EM80] - Blaupunkt Ideal, Berlin, |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 670 x 430 x 300 mm / 26.4 x 16.9 x 11.8 inch |
| Notes | Blaupunkt London H4053 mit ECC81 und EM80. Siehe auch H4053 mit 2x EC92 und EM85. Bei UKW Cascode-Vorstufe und schaltbare Nachlaufsteuerung (AFC). AM-Bereiche mit fremdgesteuerter additiver Mischstufe. Regelbares 4-Kreis-Filter. 6 mechanische Stationstasten für 3x UKW und 3x MW. |
| Net weight (2.2 lb = 1 kg) | 17.5 kg / 38 lb 8.7 oz (38.546 lb) |
| Mentioned in | D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli |
| Literature/Schematics (1) | -- Original-techn. papers. |
| Literature/Schematics (2) | -- Original prospect or advert (Point Bleu Prospekt, 1953-1954) |
