MU670W

MU670W; Blaupunkt Ideal, (ID = 477499) Radio
MU670W; Blaupunkt Ideal, (ID = 1757116) Radio MU670W; Blaupunkt Ideal, (ID = 363489) Radio
MU670W; Blaupunkt Ideal, (ID = 363497) Radio MU670W; Blaupunkt Ideal, (ID = 363495) Radio
MU670W; Blaupunkt Ideal, (ID = 363491) Radio MU670W; Blaupunkt Ideal, (ID = 363492) Radio
MU670W; Blaupunkt Ideal, (ID = 363493) Radio MU670W; Blaupunkt Ideal, (ID = 363496) Radio
MU670W; Blaupunkt Ideal, (ID = 363499) Radio MU670W; Blaupunkt Ideal, (ID = 759457) Radio
Use red slider bar for more.
MU670W; Blaupunkt Ideal, (ID = 1757116) Radio

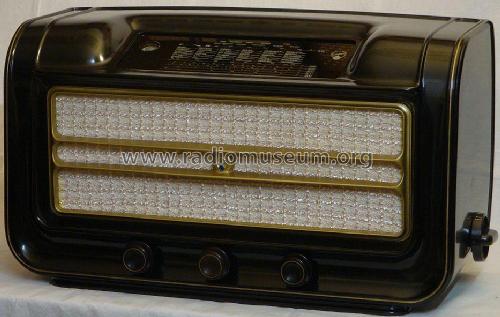

Blaupunkt Ideal,: MU670W [Radio] ID = 1757116 933x592
Select picture or schematic to display from thumbnails on the right and click for download.
For model MU670W, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH11 EF11 EBF11 EM11 EL11 AZ11
Main principle Superheterodyne (common); ZF/IF 473/10700 kHz
Tuned circuits 6 AM circuit(s)     6 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18.5 cm = 7.3 inch
Power out
from Radiomuseum.org Model: MU670W - Blaupunkt Ideal, Berlin,
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 300 x 200 mm / 20.5 x 11.8 x 7.9 inch
Notes 3× Kurzwelle. Entspricht dem M289W.
Flankendemodulator für UKW.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Source of data - - Data from my own collection
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 2

Model page created by Herbert Heintges. See "Data change" for further contributors.



All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
Here you find 3226 models, 2910 with images and 2227 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Blaupunkt Ideal,: MU670W
Threads: 1 | Posts: 1
Hits: 1317     Replies: 0
blaupunkt: MU670W;
Giuseppe De Sabato
08.Jun.15
  1

Salve.Sono da poco in possesso di un apparecchio Blaupunkt MU670W.La radio è funzionante,ma si ottiene un ascolto normale solo tenendo il volume al massimo e le stazioni più deboli si ricevono appena.Sono convinto che il potenziometro montato è molto più recente,e sto facendo delle ricerche per reperirne uno originale in condizioni d'uso.non conosco neanche le caratteristiche tecniche.Qualcuno potrebbe cortesemente darmi delle indicazioni?Grazie
