Omnibus Anlage München IV (4) ab X 991001
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1966/1967
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 26630
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Handbuch RFP 1966/67 S.285 (Thiele)
Handbuch RFP 1966/67 S.285 (Thiele)
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 13
- Main principle
- Superheterodyne (common); ZF/IF 460 or 452/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 14 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12; 24 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 12 W (unknown quality)
- Material
- Metal case

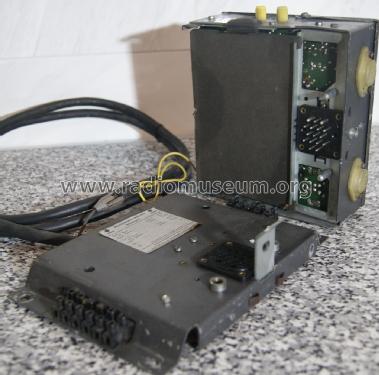

- from Radiomuseum.org
- Model: Omnibus Anlage München IV ab X 991001 - Blaupunkt Ideal, Berlin,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 138 x 183 x 125 mm / 5.4 x 7.2 x 4.9 inch
- Notes
-
Halbleiter teilweise mehrfach vorhanden.
Omnibus-Übertragungsanlage München IV bestehend aus Empfängerteil Frankfurt Serie X ohne NF-Stufe, Bedienungsteil und Leistungsverstärker.
- Net weight (2.2 lb = 1 kg)
- 5.6 kg / 12 lb 5.4 oz (12.335 lb)
- Price in first year of sale
- 710.00 DM
- External source of data
- erb
- Source of data
- Handbuch VDRG 1966/1967
- Literature/Schematics (1)
- -- Original-techn. papers.
- Other Models
-
Here you find 3762 models, 3455 with images and 2371 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
Collections
The model Omnibus Anlage München IV (4) is part of the collections of the following members.
Forum contributions about this model: Blaupunkt Ideal,: Omnibus Anlage München IV ab X 991001
Threads: 1 | Posts: 3
Hello;
We have unknown Blaupunkt buss radio.
Does enyon recoqnize proper model?
Its connect to old Munchen bakplane, I`ll doubt it`snt Munchen, becuse I havent find proper picture whits fit for Muchen or other Blaupunkt model.
Older one Munchen have tubes, but this is full transitored.
Above unit ( connection point for mic, etc ?) has 4 transistor BFY39, Z 1,5, Z6/3
and AD 150B.
What does mean upper units puttons R, TB, AL, JL, KL. Our old bus driver don`t remember mening of them. They are bus builders and driver from 70 tale (Kabus etc.).
Receiver is fully transistored. Power 12 or 24 etc. ?
Unfotunatelly all connection wires are cut.
I`ll like to know both units model, that I can repait them.
Friendly Kalle
Varkaus bussimuseo
Voitte lähettää vastauksia myös suomeksi.
Attachments
- Main picture (801 KB)
- back of upper unit (497 KB)
- receiver inside (934 KB)
Kaarlo Suomalainen, 20.Oct.25
