Sevilla 74.370
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1964/1965
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 109876
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

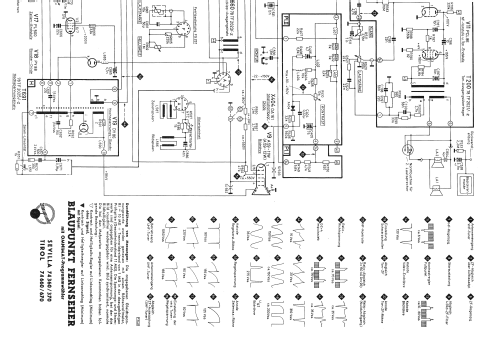

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes
- PCC88 PCF82 EF80 EF80 EF184 PCL84 EF80 PCL86 ECH84 PCL85 ECH84 PL500 PY88 DY86 A59-11W or A59-12W
- Number of Transistors
- 2
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sevilla 74.370 - Blaupunkt Ideal, Berlin,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 695 x 490 x 340 mm / 27.4 x 19.3 x 13.4 inch
- Notes
-
VHF/UHF
Anschluss für Kabelfernbedienung FG 257 (Lautstärke und Helligkeit).
- Net weight (2.2 lb = 1 kg)
- 31 kg / 68 lb 4.5 oz (68.282 lb)
- Price in first year of sale
- 1,415.00 DM
- Source of data
- Handbuch VDRG 1964/1965
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
