Stand-Super 4W76

Stand-Super 4W76; Blaupunkt Ideal, (ID = 575353) Radio

Stand-Super 4W76; Blaupunkt Ideal, (ID = 13850) Radio

Stand-Super 4W76; Blaupunkt Ideal, (ID = 6598) Radio

Stand-Super 4W76; Blaupunkt Ideal, (ID = 13849) Radio

Stand-Super 4W76; Blaupunkt Ideal, (ID = 854648) Radio
Stand-Super 4W76; Blaupunkt Ideal, (ID = 1304117) Radio Stand-Super 4W76; Blaupunkt Ideal, (ID = 65185) Radio
Stand-Super 4W76; Blaupunkt Ideal, (ID = 127430) Radio Stand-Super 4W76; Blaupunkt Ideal, (ID = 707761) Radio
Stand-Super 4W76; Blaupunkt Ideal, (ID = 1304118) Radio Stand-Super 4W76; Blaupunkt Ideal, (ID = 1304119) Radio
Stand-Super 4W76; Blaupunkt Ideal, (ID = 1304120) Radio Stand-Super 4W76; Blaupunkt Ideal, (ID = 1304121) Radio
Stand-Super 4W76; Blaupunkt Ideal, (ID = 1448039) Radio Stand-Super 4W76; Blaupunkt Ideal, (ID = 1448466) Radio
Use red slider bar for more.
Stand-Super 4W76; Blaupunkt Ideal, (ID = 1304117) Radio
Blaupunkt Ideal,: Stand-Super 4W76 [Radio] ID = 1304117 922x608
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stand-Super 4W76, Blaupunkt (Ideal), Berlin, später Hildesheim:

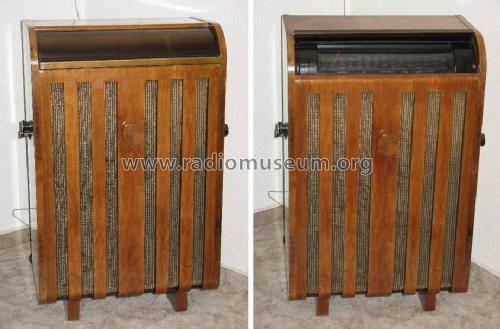

Foto: H. Börner

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ACH1 AH1 AB2 AF7 AL4 AZ1 GIR312Sf15
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Stand-Super 4W76 - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 520 x 850 x 309 mm / 20.5 x 33.5 x 12.2 inch
Notes variable Bandbreite
Price in first year of sale 392.00 RM
Source of data HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb

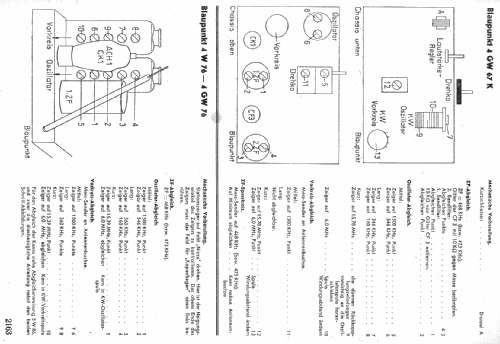

Circuit diagram reference Schenk-Regelien und FS-Bestückungstab.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
