Stockholm 25.355; Blaupunkt Ideal, (ID = 216180) Radio
Blaupunkt Ideal,: Stockholm 25.355 [Radio] ID = 216180 933x457
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stockholm 25.355, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EAF801 ECL86 EM87 ECL86 ECC81 EC92
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Stockholm 25.355 - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 650 x 245 x 210 mm / 25.6 x 9.6 x 8.3 inch
Notes Dioden: 2× AA113, 7× AA118).

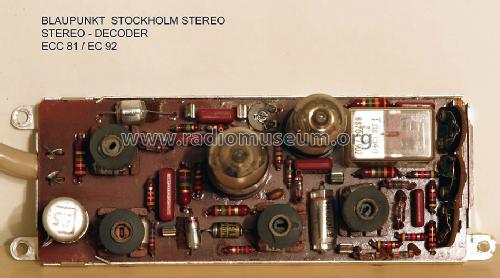

Voll-Stereogerät mit Röhren-Stereo-Decoder, bedruckte Leiterplatten, Höhen-/Tiefensteller; KW: 16,5...42,86 m und gespreiztes 49-m-Band; drehbare Ferrit-Antenne; Stereo-NF-Verstärker mit 2 Endstufen je 4 W. Für Stereo-Wiedergabe ist eine externe LS-Box (25.950) erforderlich.
Ident mit Stockholm 7.625.355.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
External source of data erb
Source of data Handbuch VDRG 1965/1966
Literature/Schematics (1) -- Original-techn. papers.
