Sultan 20200

Sultan 20200; Blaupunkt Ideal, (ID = 83529) Radio

Sultan 20200; Blaupunkt Ideal, (ID = 83530) Radio

Sultan 20200; Blaupunkt Ideal, (ID = 83528) Radio

Sultan 20200; Blaupunkt Ideal, (ID = 83536) Radio

Sultan 20200; Blaupunkt Ideal, (ID = 83537) Radio

Sultan 20200; Blaupunkt Ideal, (ID = 83538) Radio

Sultan 20200; Blaupunkt Ideal, (ID = 83535) Radio
Sultan 20200; Blaupunkt Ideal, (ID = 84417) Radio Sultan 20200; Blaupunkt Ideal, (ID = 84419) Radio
Sultan 20200; Blaupunkt Ideal, (ID = 84418) Radio Sultan 20200; Blaupunkt Ideal, (ID = 431930) Radio
Sultan 20200; Blaupunkt Ideal, (ID = 538172) Radio Sultan 20200; Blaupunkt Ideal, (ID = 538173) Radio
Sultan 20200; Blaupunkt Ideal, (ID = 544713) Radio Sultan 20200; Blaupunkt Ideal, (ID = 954847) Radio
Sultan 20200; Blaupunkt Ideal, (ID = 1281916) Radio Sultan 20200; Blaupunkt Ideal, (ID = 1346039) Radio
Use red slider bar for more.
Sultan 20200; Blaupunkt Ideal, (ID = 84417) Radio
Blaupunkt Ideal,: Sultan 20200 [Radio] ID = 84417 933x611.967741935
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sultan 20200, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner

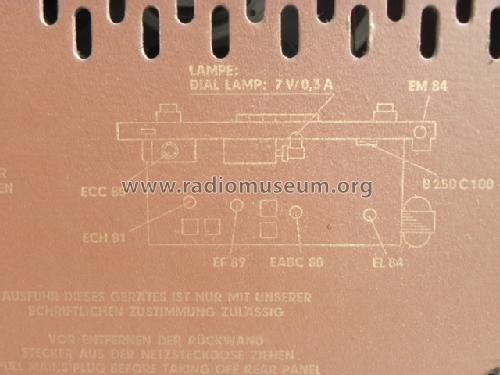

Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 155; 220 Volt
Loudspeaker 3 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Sultan 20200 - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 540 x 354 x 238 mm / 21.3 x 13.9 x 9.4 inch
Notes Holzgehäuse mit Kunststofflautsprechergrill.
Net weight (2.2 lb = 1 kg) 9.7 kg / 21 lb 5.9 oz (21.366 lb)
Source of data -- Collector info (Sammler)

Model page created by Christopher Bried. See "Data change" for further contributors.
