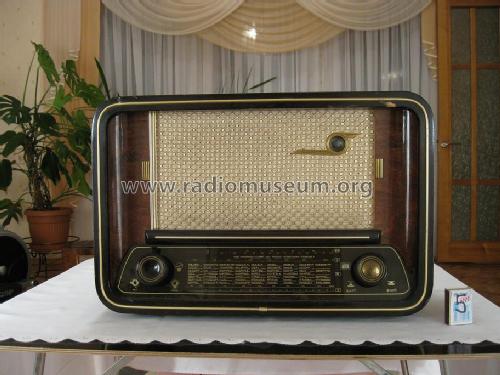

Toccata F52UH; Blaupunkt Ideal, (ID = 339221) Radio
Blaupunkt Ideal,: Toccata F52UH [Radio] ID = 339221 933x614
Select picture or schematic to display from thumbnails on the right and click for download.
For model Toccata F52UH, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UF80 UCH42 UAF42 UAA11 UM11 UL41
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 473/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Toccata F52UH - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 339 x 214 mm / 19.7 x 13.3 x 8.4 inch
Notes Antennenwähler mit 5 Schaltstellungen.
Net weight (2.2 lb = 1 kg) 8.6 kg / 18 lb 15.1 oz (18.943 lb)
Price in first year of sale 278.00 DM
Collectors' prices
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1952/53
