V530; Blaupunkt Ideal, (ID = 113815) TV Radio

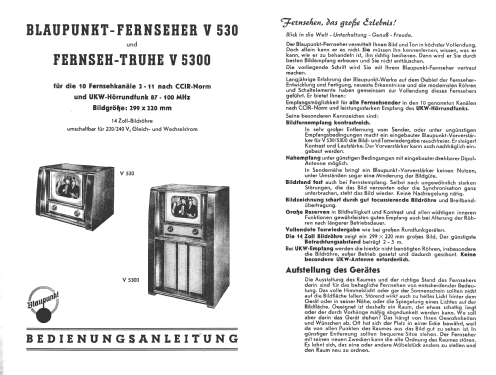

Blaupunkt Ideal,: V530 [TV Radio] ID = 113815 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model V530, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1953 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 18: EF80 ECC81 EF80 ECH81 EF80 EF80 EAA91 PL83 EF80 PABC80 PL82 ECL80 PCL81 ECC82 PL81 PY83 EY51 Bmv35/2 or MW36-29
Main principle Superhet, double/triple conversion; ZF/IF 24750/22750/5500 kHz; 2 AF stage(s)
Tuned circuits 13 FM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220/240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: V530 - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 640 x 515 x 520 mm / 25.2 x 20.3 x 20.5 inch
Notes

Optional weitere HF Vorstufe mit PCC84 möglich, siehe Dokumentation (update2.pdf).
UKW-Teil 86-101 MHz mit Doppelüberlagerung, FS-Teil VHF Kanal 2-11.
Auch als technisch gleiches Standgerät V5300 (1595,- DM, 49 kg).

Net weight (2.2 lb = 1 kg) 34 kg / 74 lb 14.2 oz (74.89 lb)
Price in first year of sale 1'395.00 DM
Source of data -- Original-techn. papers.

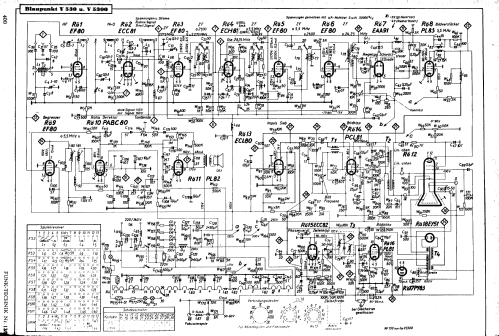

Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 2
Mentioned in Funk-Technik (FT) (Heft 3/1953, S.71; Heft 6/1953, S.175)
Literature/Schematics (1) Funk-Technik (FT) (Heft 13/1953, S.399-400)

Model page created by Bernhard Nagel. See "Data change" for further contributors.
