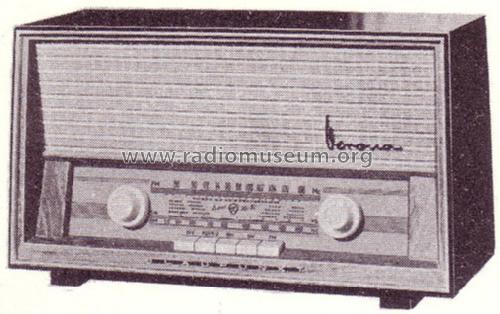

Verona 22100; Blaupunkt Ideal, (ID = 450478) Radio Verona 22100; Blaupunkt Ideal, (ID = 66068) Radio
Verona 22100; Blaupunkt Ideal, (ID = 423134) Radio Verona 22100; Blaupunkt Ideal, (ID = 450476) Radio
Verona 22100; Blaupunkt Ideal, (ID = 750506) Radio Verona 22100; Blaupunkt Ideal, (ID = 750507) Radio
Verona 22100; Blaupunkt Ideal, (ID = 750509) Radio Verona 22100; Blaupunkt Ideal, (ID = 750510) Radio
Use red slider bar for more.
Verona 22100; Blaupunkt Ideal, (ID = 450473) Radio
Blaupunkt Ideal,: Verona 22100 [Radio] ID = 450473 900x602
Select picture or schematic to display from thumbnails on the right and click for download.
For model Verona 22100, Blaupunkt (Ideal), Berlin, später Hildesheim:
Sammlung

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EF89 EABC80 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 155; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Verona 22100 - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 430 x 250 x 190 mm / 16.9 x 9.8 x 7.5 inch
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 295.00 DM
External source of data Erb
Source of data Handbuch VDRG 1962/1963
