Braun; Frankfurt: 239W [Radio] ID = 1038436 933x610
Select picture or schematic to display from thumbnails on the right and click for download.
For model 239W, Braun; Frankfurt:
Ausgestellt im Rundfunkmuseum der Stadt Fürth.

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AK2 AF3 AB2 AL4 AM2 AZ1
Main principle Superheterodyne (common); ZF/IF 488 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: 239W - Braun; Frankfurt
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 610 x 310 x 320 mm / 24 x 12.2 x 12.6 inch
Notes Ch=638W
Net weight (2.2 lb = 1 kg) 13.7 kg / 30 lb 2.8 oz (30.176 lb)
Price in first year of sale 227.00 RM
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

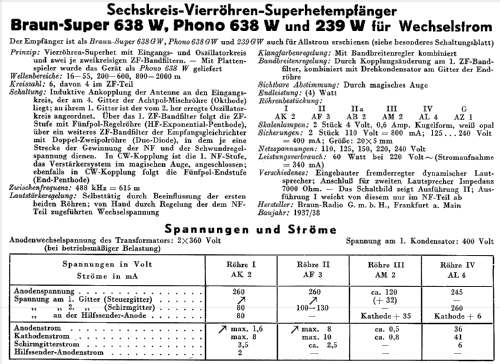

Circuit diagram reference Lange + Schenk
