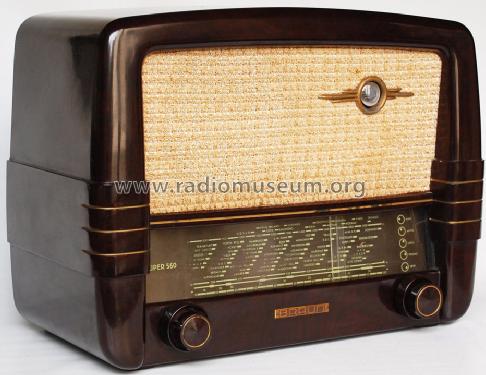

Braun; Frankfurt: 560W [Radio] ID = 1701844 933x719
Select picture or schematic to display from thumbnails on the right and click for download.
For model 560W Mag. Auge, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EAF42 EL41 EM11 AZ41
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt

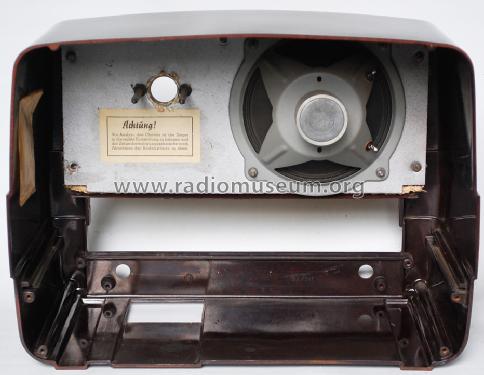

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: 560W [Mag. Auge] - Braun; Frankfurt
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 418 x 307 x 200 mm / 16.5 x 12.1 x 7.9 inch
Notes Der Empfäner wurde z. T. auch ohne Magisches Auge hergestellt!
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 228.00 DM
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb
