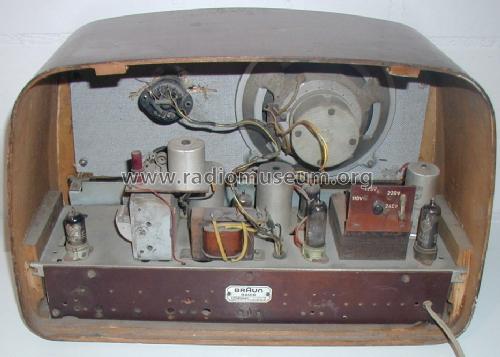

725WUK; Braun; Frankfurt (ID = 1642848) Radio 725WUK; Braun; Frankfurt (ID = 1768307) Radio
725WUK; Braun; Frankfurt (ID = 1768308) Radio 725WUK; Braun; Frankfurt (ID = 1768309) Radio
725WUK; Braun; Frankfurt (ID = 1768311) Radio 725WUK; Braun; Frankfurt (ID = 1768312) Radio
Use red slider bar for more.
725WUK; Braun; Frankfurt (ID = 1768310) Radio
Braun; Frankfurt: 725WUK [Radio] ID = 1768310 933x747
Select picture or schematic to display from thumbnails on the right and click for download.
For model 725WUK, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF80 ECH42 EF41 EBC41 EM11 EL41 AZ41
Main principle Super-Heterodyne (Super in general); ZF/IF 473/10700 kHz
Tuned circuits 6 AM circuit(s)     5 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 725WUK - Braun; Frankfurt
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 320 x 210 mm / 18.5 x 12.6 x 8.3 inch
Notes UKW Demodulation mit Flankengleichrichter.
Net weight (2.2 lb = 1 kg) 7.6 kg / 16 lb 11.8 oz (16.74 lb)
Collectors' prices
External source of data Wiesmüller
Source of data Lange, Schaltungen der Funkindustrie

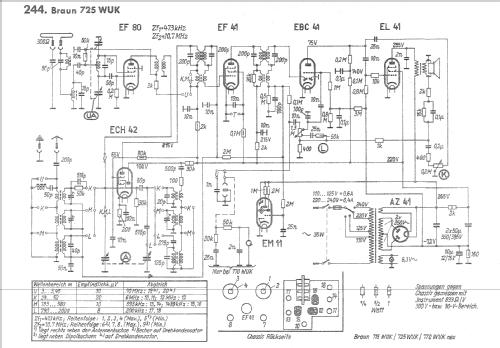

Literature/Schematics (1) Funkschau (JG 1951/52 Plan Nr.:244)
