77 UKW Ch= RC60, RC55 UK

77 UKW Ch= RC60, RC55 UK; Braun; Frankfurt (ID = 1515043) Radio
77 UKW Ch= RC60, RC55 UK; Braun; Frankfurt (ID = 2303119) Radio 77 UKW Ch= RC60, RC55 UK; Braun; Frankfurt (ID = 1928456) Radio
77 UKW Ch= RC60, RC55 UK; Braun; Frankfurt (ID = 1928457) Radio 77 UKW Ch= RC60, RC55 UK; Braun; Frankfurt (ID = 1928455) Radio
77 UKW Ch= RC60, RC55 UK; Braun; Frankfurt (ID = 1928459) Radio 77 UKW Ch= RC60, RC55 UK; Braun; Frankfurt (ID = 1928458) Radio
77 UKW Ch= RC60, RC55 UK; Braun; Frankfurt (ID = 151096) Radio 77 UKW Ch= RC60, RC55 UK; Braun; Frankfurt (ID = 151099) Radio
77 UKW Ch= RC60, RC55 UK; Braun; Frankfurt (ID = 151097) Radio 77 UKW Ch= RC60, RC55 UK; Braun; Frankfurt (ID = 151098) Radio
Use red slider bar for more.
77 UKW Ch= RC60, RC55 UK; Braun; Frankfurt (ID = 2303119) Radio

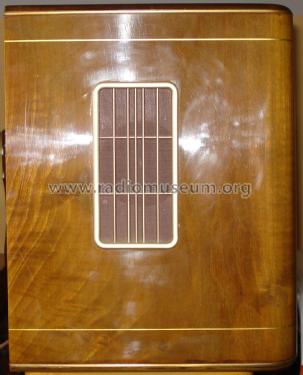

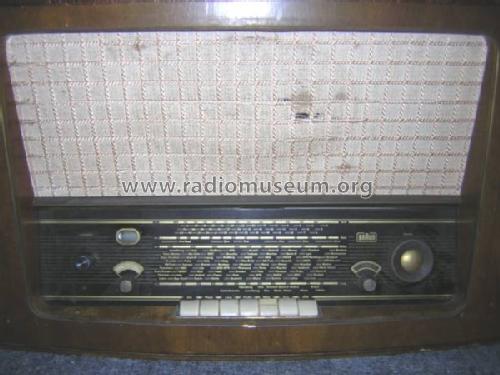

Braun; Frankfurt: 77 UKW Ch= RC60, RC55 UK [Radio] ID = 2303119 1400x1037
Select picture or schematic to display from thumbnails on the right and click for download.
For model 77 UKW Ch= RC60, RC55 UK, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EF89 EM80 EABC80 EL84
Semiconductors (the count is only for transistors) B250C100
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out 6 W (unknown quality)
from Radiomuseum.org Model: 77 UKW Ch= RC60, RC55 UK - Braun; Frankfurt
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 655 x 390 x 335 mm / 25.8 x 15.4 x 13.2 inch
Notes

Chassis RC55 UK.

Kataloge, Firmenprospekte und Schaltpläne bezeichnen das Chassis mit RC60 (Rundfunk-Chassis 60), tatsächlich produzierte Geräte zeigen die Typbezeichnungen RC55 AU, RC55 AUK oder RC56 AUK. Siehe auch hier.

Price in first year of sale 315.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56
Mentioned in Katalog Thiele,Helmstedt 1955/56 (Rundfunk-Phono-Fernseh-Katalog)
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Braun; Frankfurt
Here you find 1039 models, 905 with images and 644 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
