Phono-Super 556UKW

Phono-Super 556UKW; Braun; Frankfurt (ID = 11563) Radio
Phono-Super 556UKW; Braun; Frankfurt (ID = 103472) Radio Phono-Super 556UKW; Braun; Frankfurt (ID = 103473) Radio
Phono-Super 556UKW; Braun; Frankfurt (ID = 103474) Radio Phono-Super 556UKW; Braun; Frankfurt (ID = 103475) Radio
Phono-Super 556UKW; Braun; Frankfurt (ID = 2265898) Radio Phono-Super 556UKW; Braun; Frankfurt (ID = 2265899) Radio
Use red slider bar for more.
Phono-Super 556UKW; Braun; Frankfurt (ID = 103472) Radio
Braun; Frankfurt: Phono-Super 556UKW [Radio] ID = 103472 378x283
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phono-Super 556UKW, Braun; Frankfurt:
ebay: ofnw

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.

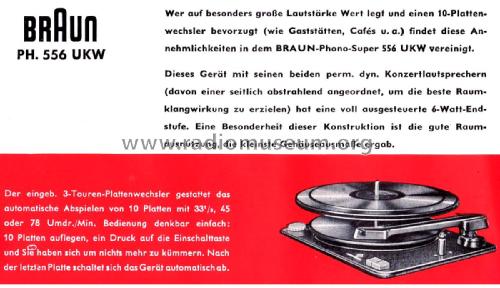

Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker 2 Loudspeakers
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Phono-Super 556UKW - Braun; Frankfurt
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 600 x 390 x 390 mm / 23.6 x 15.4 x 15.4 inch
Net weight (2.2 lb = 1 kg) 14.5 kg / 31 lb 15 oz (31.938 lb)
Price in first year of sale 494.00 DM
External source of data Erb
Source of data Rundfunk- und Fernseh-Katalog 1954/55
